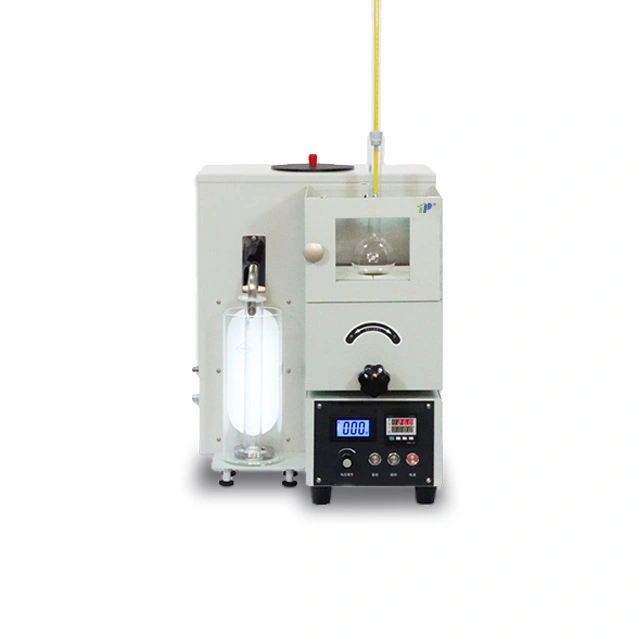

Petroleum Product Distillation Tester

Model: PYD-6536

TOP INSTRUMENT Petroleum Product Distillation Tester is designed and made as per standards GB/T6536 Test Method for Distillation Characteristics of Petroleum Products and ASTM D86 Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, and solvent having special boiling point, naphtha, diesel oil, distillate fuels and similar petroleum products.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PYD-6536

  • TOP

Characteristic:


  • It adopts a special heating furnace to ensure the safety. The heating power can be adjusted continuously.

  • The rising up and lowering down of distillation flask can be adjusted free by lifting device.Flexible and convenient to operate.

  • The condensing tube water bath has the function of temperature control, which can be set and adjusted in the range of (room temperature + 10) ℃~ 60 ℃. The temperature in the bath is uniform and meets the requirements of the test.




Power supply

AC(220±10%)V, 50Hz

Total power consumption

≤2000W

Receiving cylinder

100ml,scale division 1ml

Distillation flask

125mL. It can meet requirements GB/T 6536 and ASTM D86

Water bath’ temperature controlling

Range

(ambient temp.+10)℃~60℃

Accuracy

±0.5℃

Ambient temperature

15℃~35℃

Relative humidity

≤85%

Dimension

460*400*550mm

Net weight

18.5kg
