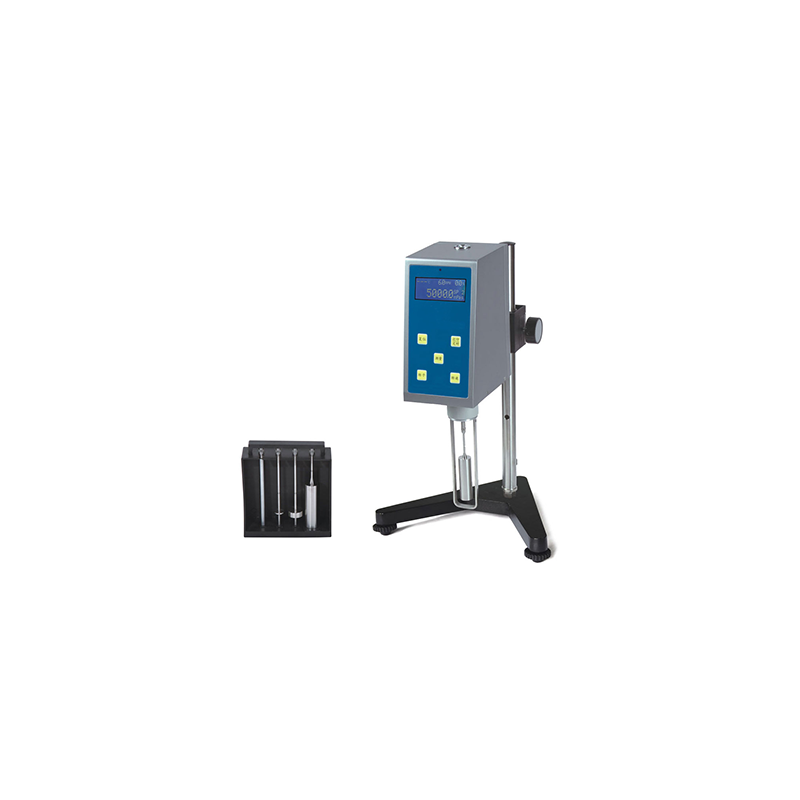

Digital Viscometer

Model: PDJ Series

TOP INSTRUMENT Digital Viscometer is a specialized laboratory tool used for measuring the viscosity of liquids. It is designed to provide accurate and precise measurements of the viscosity of various liquids such as oils, paints, and other fluids. It is commonly used in research labs, industrial settings, and quality control applications where accurate and precise viscosity measurements are required.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PDJ Series

  • TOP

Characteristic:


  • Adopting a 16-bit microprocessor core control circuit without gear drive.

  • The blue screen LCD digital display directly displays the viscosity, rotation speed, percentage torque, rotor number and the maximum measurable viscosity value of the selected rotor at the current rotation speed.

  • The measurement timing function can be set, the buttons are eye-catching, the rotation speed is stable, and the measurement is accurate.

  • A printer and RTD temperature probe are optional.




ModelPDJ-5SPDJ-8S
Measured Range (mPa.s)1-100,0001-2,000,000
Rotation Speed (rpm)6, 12, 30, 600.3, 0.6, 1.5, 3, 6, 12, 30, 60
Number of Spindle4 types(L1-L4)
Measurement Accuracy±1%(FS)
Repeatability±0.5%(FS)
PowerSpecial power adaptor(input100-240V/50-60Hz)

LO spindle is for option

Measured Range (mPa·s)

1-1001-2,000
