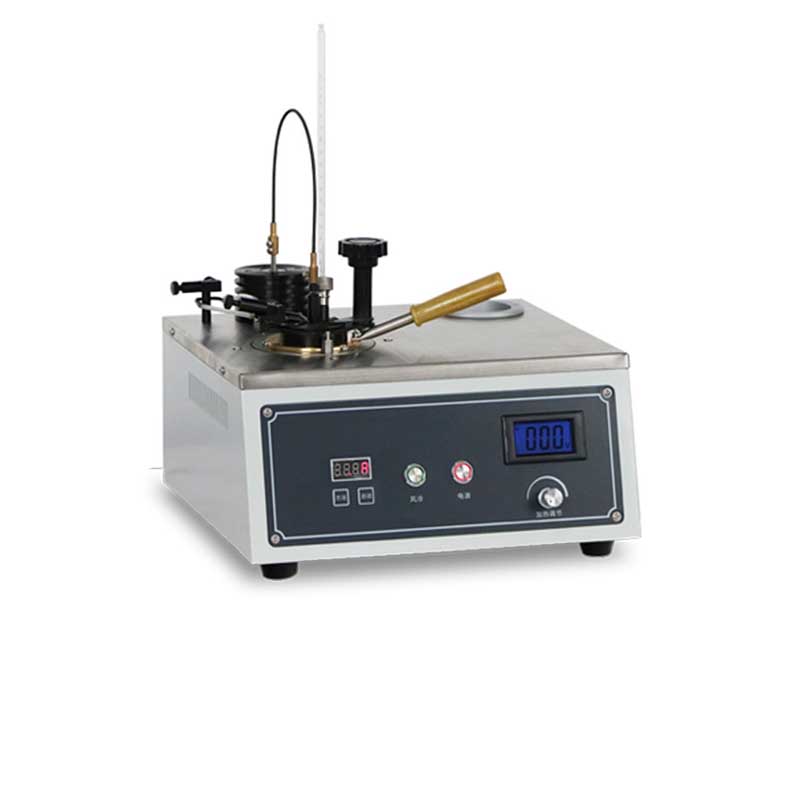

PYD-261 PMCC Flash Point Tester

Model: PYD-261

TOP INSTRUMENT PYD-261 PMCC Flash Point Tester is designed and manufactured as per standards GB/T 261-2021 Determination of Flash Point - Pensky-Martens Closed Cup Method and ASTM D93 Standard Test Method for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PYD-261

  • TOP

Characteristic:


  • This instrument is designed as per GB/T261 and ASTM D93.

  • The heating power is continuously adjustable. The power is shown visually by voltmeter. The temperature control mode is advanced and reasonable.

  • The structure is designed small and exquisite. The stainless-steel table board is beautiful and easy to clean.

  • Operation is easy. Test results are precise. It has been chosen as the instrument to test the closed cup flash point by many metering and detecting institutes.




Power supply

AC (220±10%)V, 50Hz

Total power consumption

≤650W

Heating device

(1)The furnace body is made of silicon carbide

(2)Heating power is adjustable from (0-600) w

Heating mode

Adjust by manual

Stir mode

Mechanical drive stirring

Stirring rate

Procedure A: (90~120)RPM

Procedure B: (250±10)RPM

Procedure C: (90~120)RPM

Oil cup

(1) Inner diameter: 50.7mm~50.8mm

(2) Depth: 55.7mm~56.0mm

(3) The scribed line depth of capacity of testing oil: 33.9mm~34.3mm

(4) Capacity of testing oil:about 70ml

Igniting source

gas(or other civilian fuels,the same below)

Thermometers

Mercury-in-glass thermometer.Specifications are as below

(1)Scale -5℃~110℃, division 0.5

(2)Scale 20℃~150℃, division 1

(3)Scale 90℃~370℃,division 2℃

Ambient temperature

(15~35)℃

Relative humidit

≤ 85%

Dimension

370mm*320mm*300mm

Net weight

7kg
