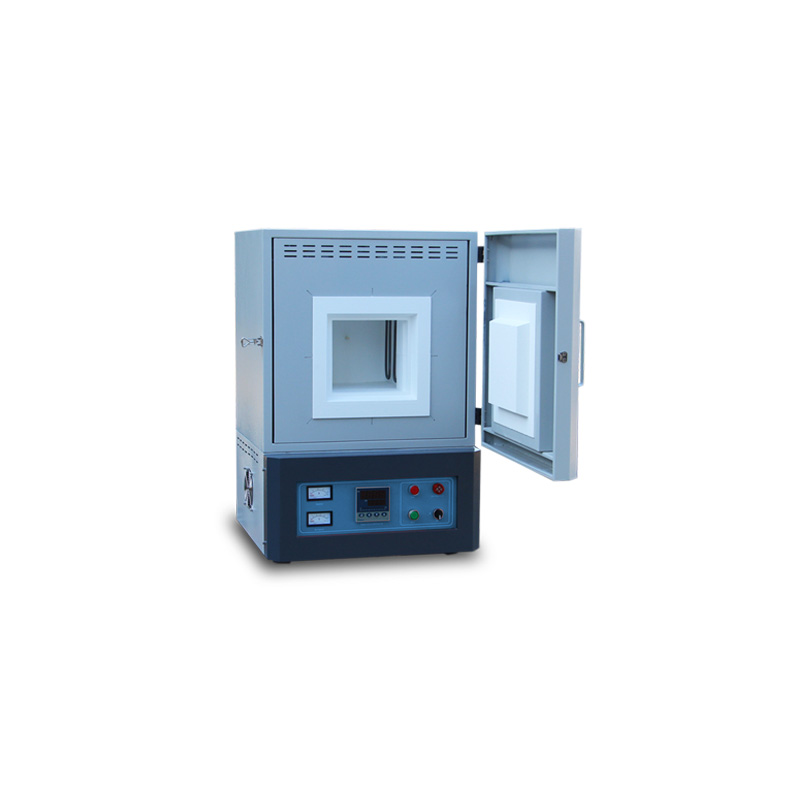

Muffle Furnace 1700C Series

Model: TM Series

TOP INSTRUMENT Muffle Furnace 1700C Series features high alumina ceramic chamber, powerful MoSi2 heaters make max temperature up to 1700 C. The ceramic muffle furnace is deal for multiple heat treating applications, such as ceramic sintering, heat treating, glass seal firing, ignition tests, gravimetric analysis, and heat treating steel parts, stones etc.
Availability:
Quantity:
  • TM Series

  • TOP

Characteristic:


  • Tmax 1700 °C.

  • Suitable for calcination of metallic materials, ceramic materials, mineral materials etc.

  • Dual steel housing with fan cooling for low surface temperature.

  • Ceramic fiber insulated chamber for maximum temperature stability and uniformity.

  • Powerful MoSi2 rods ensure uniform temperature.

  • Precise digital PID temperature controller.

  • Long life type B thermocouple.

  • CE certified, standard.




ModelTM L3/17TM L12/17TM L18/17
Max temperature1700 degree C
Chamber size150*150*150mm (3.3L)300*200*200mm (12L)300*250*250mm (18L)
Heating elementMoSi2 rods
Heating sides2
Input220V, 1 phase220V, 1 phase380V, 3 phase
Maximum output4KW6KW7KW
Temperature controllerYudian controller (Shimaden is optional)
Thermal coupleB type
CE certificateYes
Warranty18 months
