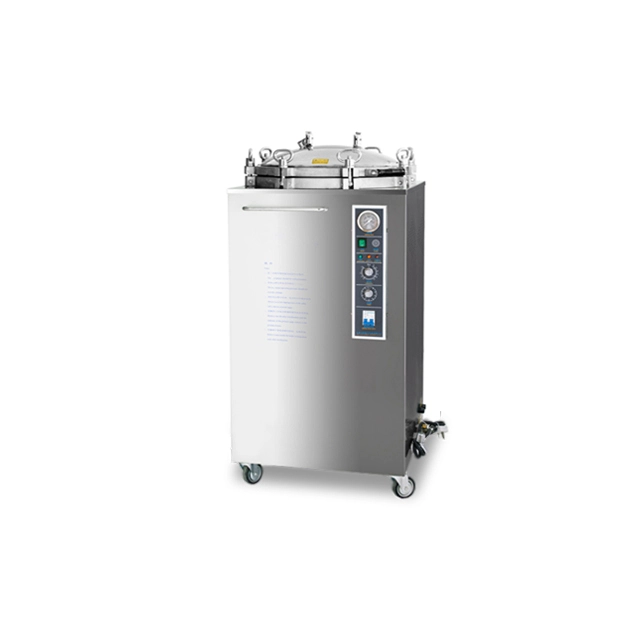

TLX-B series
TOP
Characteristic:
Full SUS 304 stainless steel structure.
Accurate dual scale indicate pressure gauge.
Silicone seal ensuring no steam leakage.
Spin buttons to set sterilization temperature and time.
Blue, orange and red light showing work status.
Automatic release when overpressure.
Water shortage and over heating protection.
Drying function can be added.
Characteristic:
Full SUS 304 stainless steel structure.
Accurate dual scale indicate pressure gauge.
Silicone seal ensuring no steam leakage.
Spin buttons to set sterilization temperature and time.
Blue, orange and red light showing work status.
Automatic release when overpressure.
Water shortage and over heating protection.
Drying function can be added.
Technical Data Model | TLX-B35L | TLX-B50L | TLX-B75L | TLX-B100L | TLX-B120L | TLX-B150L |
Volume | 35L | 50L | 75L | 100L | 120L | 150L |
Max Working Pressure | 0.165Mpa | 0.165Mpa | 0.165Mpa | 0.165Mpa | 0.165Mpa | 0.165Mpa |
Time Range | 0-80min | 0-80min | 0-80min | 0-80min | 0-80min | 0-80min |
Temperature Range | 115℃-129℃ | 115℃-129℃ | 115℃-129℃ | 115℃-129℃ | 115℃-129℃ | 115℃-129℃ |
Sterilization Chamber | Φ300*485mm | Φ320*545mm | Φ388*480mm | Φ388*630mm | Φ460*590mm | Φ460*700mm |
Power | AC220V/50Hz/ | AC220V/50Hz/ | AC220V/50Hz/ | AC220V/50Hz/ | AC220V/50Hz/ | AC220V/50Hz/ |
Technical Data Model | TLX-B35L | TLX-B50L | TLX-B75L | TLX-B100L | TLX-B120L | TLX-B150L |
Volume | 35L | 50L | 75L | 100L | 120L | 150L |
Max Working Pressure | 0.165Mpa | 0.165Mpa | 0.165Mpa | 0.165Mpa | 0.165Mpa | 0.165Mpa |
Time Range | 0-80min | 0-80min | 0-80min | 0-80min | 0-80min | 0-80min |
Temperature Range | 115℃-129℃ | 115℃-129℃ | 115℃-129℃ | 115℃-129℃ | 115℃-129℃ | 115℃-129℃ |
Sterilization Chamber | Φ300*485mm | Φ320*545mm | Φ388*480mm | Φ388*630mm | Φ460*590mm | Φ460*700mm |
Power | AC220V/50Hz/ | AC220V/50Hz/ | AC220V/50Hz/ | AC220V/50Hz/ | AC220V/50Hz/ | AC220V/50Hz/ |
