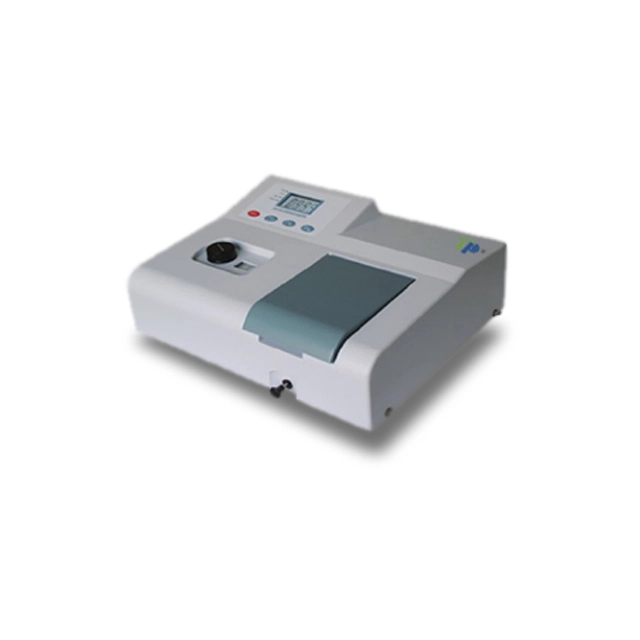

PUV1100
TOP
Characteristic:
Simple single beam spectrophotometer.
The wavelength is set manually from the dial on thefront panel.
Direct readout of transmission or absorption on the LED display.
Measured values can betransferred to PC via RS232 port for further analysis.
Characteristic:
Simple single beam spectrophotometer.
The wavelength is set manually from the dial on thefront panel.
Direct readout of transmission or absorption on the LED display.
Measured values can betransferred to PC via RS232 port for further analysis.
Model | PUV1100 | |
Optical System | Single Beam, Grating1200lines/mm | |
Wavelength Range | 195-1020 nm | |
Spectral Bandwidth | 5 nm | |
Wavelength Accuracy | ±2nm | |
Wavelength Repeatability | 1nm | |
Photometric Accuracy | ±0.5%T | |
Photometric Repeatability | 0.2%T | |
Photometric Range | 0-200%T | |
Stray light | 0.3%T | |
Stability | 0.002A | |
Baseline Flatness | ±0.002A | |
Noise | ±0.001A | |
Wavelength Setting | Manual | |
Work Mode | T, A, C | |
Light Source | Deuterium & Tungsten lamp | |
Display | 4 LCD | |
Detector | Silicon Photodiode | |
Output | RS-232 port | |
Power | AC 220V/50Hz or AC 110V/60Hz | |
Shipping Size | 520*450*320mm | |
Gross Weight | 12kg |
Model | PUV1100 | |
Optical System | Single Beam, Grating1200lines/mm | |
Wavelength Range | 195-1020 nm | |
Spectral Bandwidth | 5 nm | |
Wavelength Accuracy | ±2nm | |
Wavelength Repeatability | 1nm | |
Photometric Accuracy | ±0.5%T | |
Photometric Repeatability | 0.2%T | |
Photometric Range | 0-200%T | |
Stray light | 0.3%T | |
Stability | 0.002A | |
Baseline Flatness | ±0.002A | |
Noise | ±0.001A | |
Wavelength Setting | Manual | |
Work Mode | T, A, C | |
Light Source | Deuterium & Tungsten lamp | |
Display | 4 LCD | |
Detector | Silicon Photodiode | |
Output | RS-232 port | |
Power | AC 220V/50Hz or AC 110V/60Hz | |
Shipping Size | 520*450*320mm | |
Gross Weight | 12kg |
