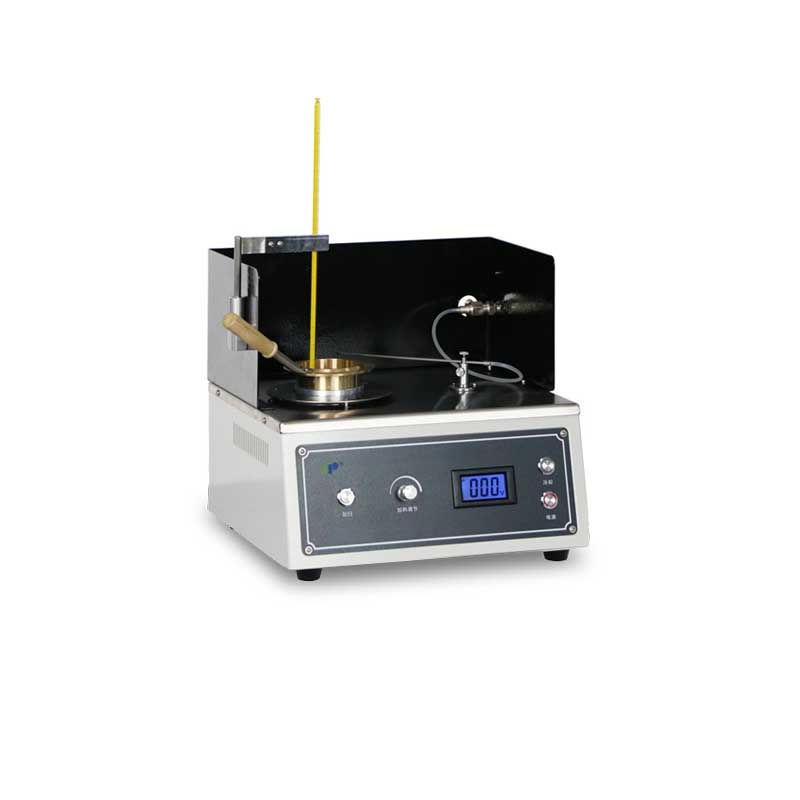

COC Flash Point Tester

Model: PYD-3536

TOP INSTRUMENT COC Flash Point Tester is designed and made as per standards GB/T3536-2008 Petroleum Products - Determination of Flash and Fire Points - Cleveland Open Cup Method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester. It is applicable to all petroleum products with flash points and fire points above 79℃ except fuel oils.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PYD-3536

  • TOP

Characteristic:


  • It adopts special heating furnace to ensure the safety of test.

  • The heating power is continuously adjustable.It can meet requirements of test.

  • The instrument is fully self-contained complete.The operator can do determination as long as connecting with coal gas or other civil gas.

  • With fast cooling function, it can improve test efficiency.




Power supply

AC (220±10%) V, 50Hz

Power consumption

≤600W

Heating device

Furnace heating, no naked fire, explosion prevented.The power is adjustable from 0W to 600W

Test flame applicator

It applies the test flame automatically

Thermometer

(-6~400)℃. Scale is 2℃. It is the same as thermometer ASTM 11C

Igniting device

(1) Ignition source: coal gas(or civil gas)

(2) Nozzle aperture: about 0.8mm

Ambient temperature

(15∼35)℃ , Relative humidity: ≤85%

Dimension

350mm*290mm*350mm (thermometer is not included)

Net weight

5.5kg
