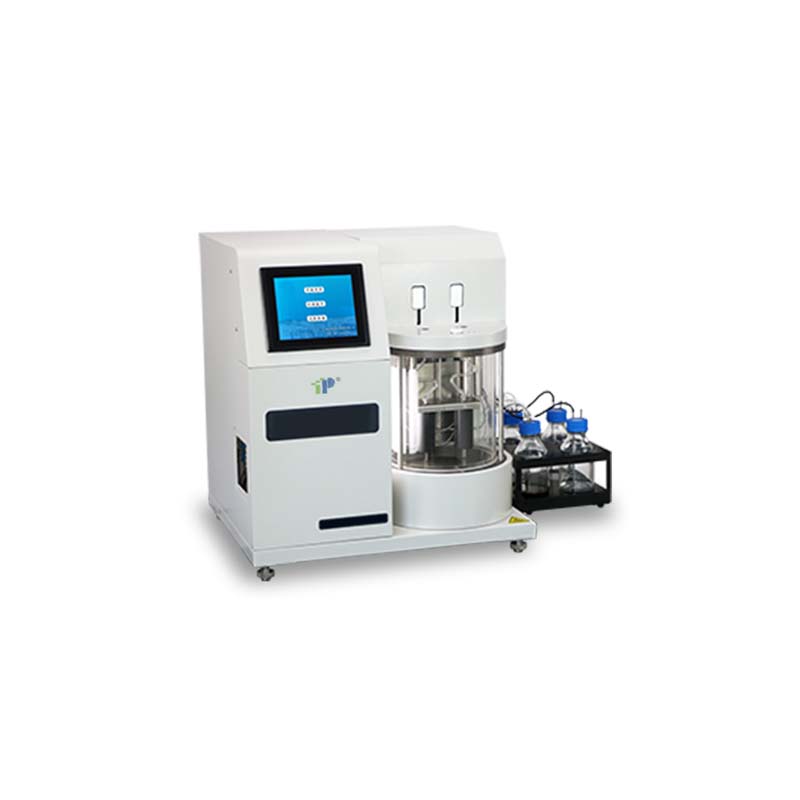

Automatic Folded Tube Kinematic Viscosity Tester

Model: PYD-0956A

TOP INSTRUMENT Automatic Folded Tube Kinematic Viscosity Tester is a specialized laboratory tool used to measure the kinematic viscosity of a liquid. It is suitable for the determination of kinematic viscosity of transparent and opaque liquids, including base oil, blended lubricating oil, biodiesel, Biodiesel Blended fuel, residual fuel oil, marine oil, etc.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PYD-0956A

  • TOP

Characteristic of Automatic Folded Tube Kinematic Viscosity Tester:


TOP INSTRUMENT Automatic Folded Tube Kinematic Viscosity Tester is a state-of-the-art instrument revolutionizing viscosity testing.


The PYD-0956A offers full automatic control with a simple one-key start detection, streamlining the entire testing process from measurement to cleaning, drying, result calculation, and data storage. Its rapid measuring speed ensures quick results, with the fastest measurement taking less than 30 seconds and an average time of under 3 minutes. Accuracy is ensured through precise control of sample measurement conditions, complemented by dual safety functions for over-temperature protection and dry burning prevention.


Cleaning the tester is efficient with its dual solvent automatic cleaning function, consuming less than 15ml of cleaning agent per process. Tube replacement is hassle-free and quick, without the need to drain the bath liquid, taking just 2 minutes to complete.


In summary, the Automatic Folded Tube Kinematic Viscosity Tester provides a comprehensive solution for viscosity testing needs, combining speed, accuracy, safety, and cost-effectiveness in a user-friendly design.




Power supply

AC220V, 50Hz

Bath tube volume

10L

Measurement range

3~3000mm2/s

Sample qty

0.5~1mL

Time control accuracy

0.01℃

Timing accuracy

0.01℃

Test time

within 3 minutes (the whole process of measurement, cleaning and drying is within 10 minutes)

Temperature control range


room temperature ~ 120 ℃ (When temperature is below room temperature, extra cold external circulation is prepared)

Repeatability

≤0.68%

Detection unit


Double folded tube viscometer (single tube three group laser detection)

Operation interface

Industrial grade 10.4-inch LCD

Total power consumption

≤1400W

Working temperature

10~30℃

Relative humidity

≤80%

Dimension

650*500*600mm
