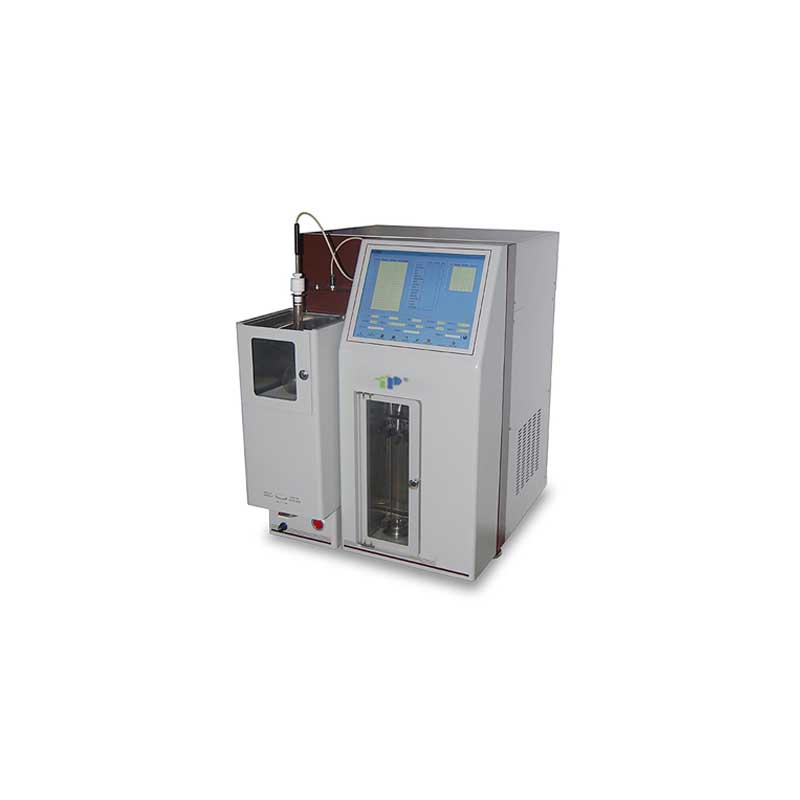

PYD-6536D
TOP
Characteristic:
Built-in microcomputer. Advanced IPC technology. 12.1 inch light-touch LCD. Man-machine dialog. Easy to operate.
Intelligent SCM control. The heating, cooling, distillate liquid level tracking, distillation rate control, recovered solution control, temperature recording, printing are all completed automatically.
It displays the vapor temperature curve, heater temperature curve and distillation rate curve in real time. Operator can judge whether the indications can meet the standards’ requirements or not in real time.
Imported compressor and temperature sensor. Automatic liquid level tracking system. The test result are reliable and in good repeatability.
The suitable standards and distillation procedures can be added as per customer’s need and different oil samples.
It has an automatic barometric pressure detecting function. The barometric correction can be completed automatically. The test result will not be influenced by the barometric pressure difference.
It can calculate the vapor temperature by inputting the residue amount after the test.
There is anti-freezing solution in the cold bath. A circulation stirrer is equipped inside. The liquid level sensor and overflow pipe will make the water leve in the bath normally.
It equips an automatic fire-extinguishing device to make the test safe.
Characteristic:
Built-in microcomputer. Advanced IPC technology. 12.1 inch light-touch LCD. Man-machine dialog. Easy to operate.
Intelligent SCM control. The heating, cooling, distillate liquid level tracking, distillation rate control, recovered solution control, temperature recording, printing are all completed automatically.
It displays the vapor temperature curve, heater temperature curve and distillation rate curve in real time. Operator can judge whether the indications can meet the standards’ requirements or not in real time.
Imported compressor and temperature sensor. Automatic liquid level tracking system. The test result are reliable and in good repeatability.
The suitable standards and distillation procedures can be added as per customer’s need and different oil samples.
It has an automatic barometric pressure detecting function. The barometric correction can be completed automatically. The test result will not be influenced by the barometric pressure difference.
It can calculate the vapor temperature by inputting the residue amount after the test.
There is anti-freezing solution in the cold bath. A circulation stirrer is equipped inside. The liquid level sensor and overflow pipe will make the water leve in the bath normally.
It equips an automatic fire-extinguishing device to make the test safe.
Power supply | AC(220±10%)V, 50Hz | |
Heating power | ≤2300W | |
Electric furnace heating power | 1300W | |
Receiving cylinder | 100 ml. Scale division 1 ml | |
Distillation flask | 125 ml, as per GB/T6536 and ASTM D86 | |
Thermometer | Total immersion. They are from ( -2 to 300 )℃ and from (-2 to 400) ℃. The scale divisions of them are 1 ℃ | |
Flask support board | Sic. Diameters of holes are φ32mm, 38mm, and 50mm | |
Temperature controller of condensing tube | Range | 0 ℃ to 60 ℃ |
Display | LED | |
Temperature controller of receiving room | Rang | 0 ℃ to ambien |
Display | LED | |
Ambient temperature | 15℃~28℃ | |
Relative humidity | ≤85% | |
Dimension | 540mm*435mm*515mm | |
Net weight | 30kg |
Power supply | AC(220±10%)V, 50Hz | |
Heating power | ≤2300W | |
Electric furnace heating power | 1300W | |
Receiving cylinder | 100 ml. Scale division 1 ml | |
Distillation flask | 125 ml, as per GB/T6536 and ASTM D86 | |
Thermometer | Total immersion. They are from ( -2 to 300 )℃ and from (-2 to 400) ℃. The scale divisions of them are 1 ℃ | |
Flask support board | Sic. Diameters of holes are φ32mm, 38mm, and 50mm | |
Temperature controller of condensing tube | Range | 0 ℃ to 60 ℃ |
Display | LED | |
Temperature controller of receiving room | Rang | 0 ℃ to ambien |
Display | LED | |
Ambient temperature | 15℃~28℃ | |
Relative humidity | ≤85% | |
Dimension | 540mm*435mm*515mm | |
Net weight | 30kg |
