Ultra-flat Compact Magnetic Stirrer

You are here: home » Products » Hotplates & Stirrers » Magnetic Stirrers » Ultra-flat Compact Magnetic Stirrer

Product Category

Ultra-flat Compact Magnetic Stirrer

Model: P-FlatSpin

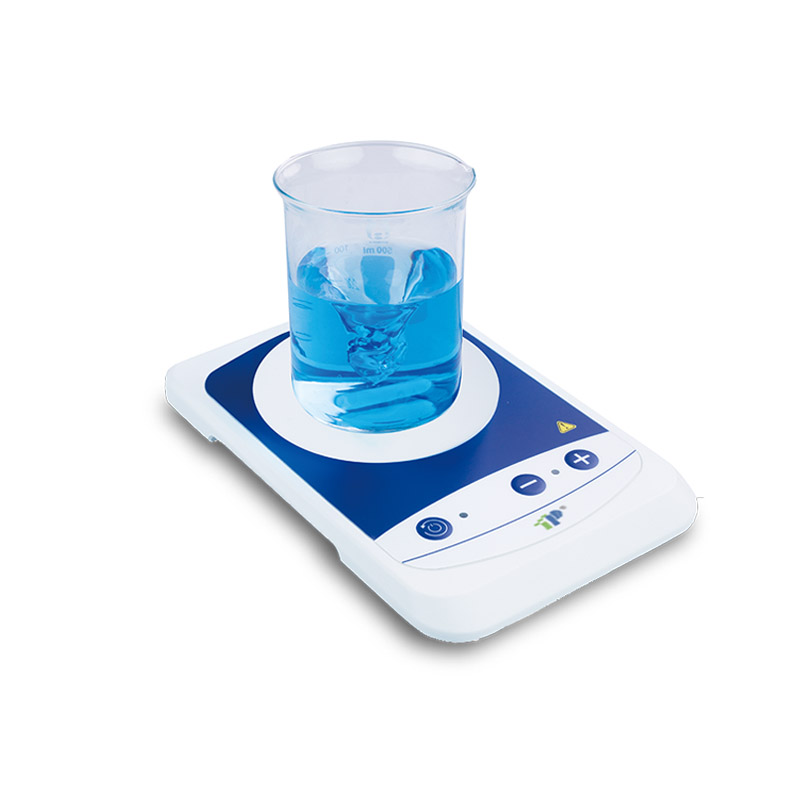

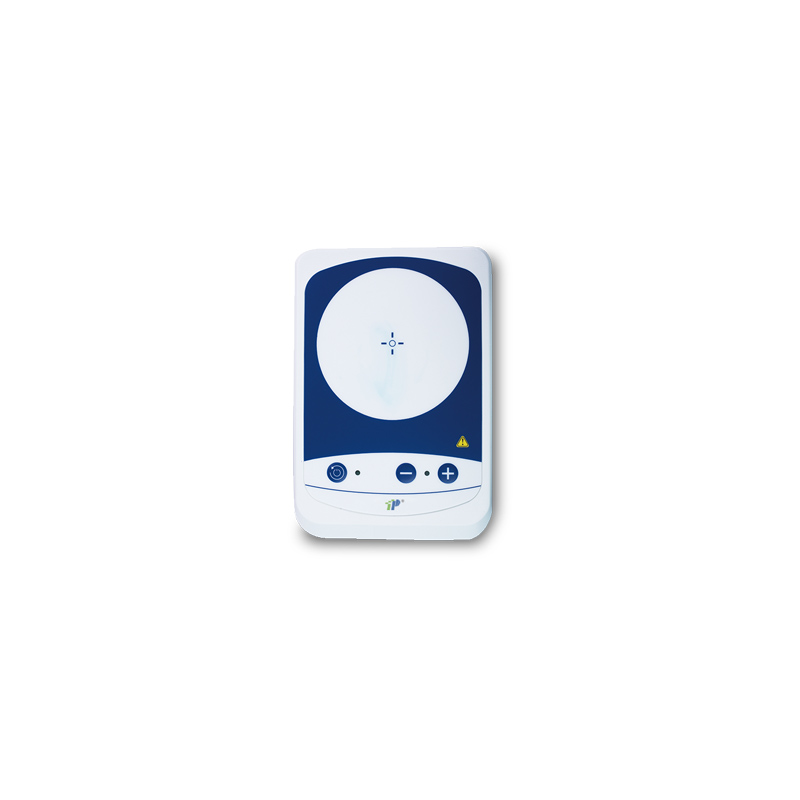

TOP INSTRUMENT Ultra-flat Compact Magnetic Stirrer is a motor less magnetic stirrer available in portable shape and size with high speed range up to 1500rpm. P-FlatSpin with PET top workplate is suitable for small volume stirring applications. The device is easy to use and requires minimal maintenance, making it a popular choice for laboratory professionals.

Quantity:
Availability:





Inquire Add to Basket

Model:
P-FlatSpin
Brand:
TOP

Characteristic:

Light in weight, portable and easy to operate.
Electronic speed regulation: from 0-1100rpm.
High resistance to chemicals.
Maintenance-free ultra-flat magnetic stirrer.
Auto reverse rotation ensures enhanced mixing.

Related Products

Economy Square Magnetic Stirrer

DC Motor Square Magnetic Stirrer

LED Digital Magnetic Stirrer

Workplate dimension	φ90mm
Workplate material	PET
Motor type	Motorless
Motor rating output	3W
Power	5W
Voltage	100-120/200-240V, 50/60Hz
Stirring positions	1
Max. stirring volume [H2O]	0.8L
Max. magnetic bar [length]	40mm
Speed range	15-1500rpm
Speed setting	Touch key
Protection class	IP65
Dimension [WDH]	17512015mm
Weight	0.3kg
Permissible ambient temperature and humidity	5-40C, 80%RH

Workplate dimension	φ90mm
Workplate material	PET
Motor type	Motorless
Motor rating output	3W
Power	5W
Voltage	100-120/200-240V, 50/60Hz
Stirring positions	1
Max. stirring volume [H2O]	0.8L
Max. magnetic bar [length]	40mm
Speed range	15-1500rpm
Speed setting	Touch key
Protection class	IP65
Dimension [WDH]	17512015mm
Weight	0.3kg
Permissible ambient temperature and humidity	5-40C, 80%RH


Blue carrying plate (18900001)	Blue Fixed ring（18900065）	Red quarter pie (18900002)	Purple quarter pie (18900003)

Blue quarter pie（18900004）	Black quarter pie (18900005)	Green quarter pie (18900048)	Golden quarter pie (18900049)

Reaction block for 50mL round bottom flask（18900080）	Reaction block for 100mL round bottom flask (18900081)	Reaction block for 250mL round bottom flask (18900082)	Reaction block for 500mL round bottom flask (18900083)

F101 protective cover (18900019)	PT1000-new	PT1000-B (18900136)	Support clamp of PT1000 (18900017)


Blue carrying plate (18900001)	Blue Fixed ring（18900065）	Red quarter pie (18900002)	Purple quarter pie (18900003)

Blue quarter pie（18900004）	Black quarter pie (18900005)	Green quarter pie (18900048)	Golden quarter pie (18900049)

Reaction block for 50mL round bottom flask（18900080）	Reaction block for 100mL round bottom flask (18900081)	Reaction block for 250mL round bottom flask (18900082)	Reaction block for 500mL round bottom flask (18900083)

F101 protective cover (18900019)	PT1000-new	PT1000-B (18900136)	Support clamp of PT1000 (18900017)
