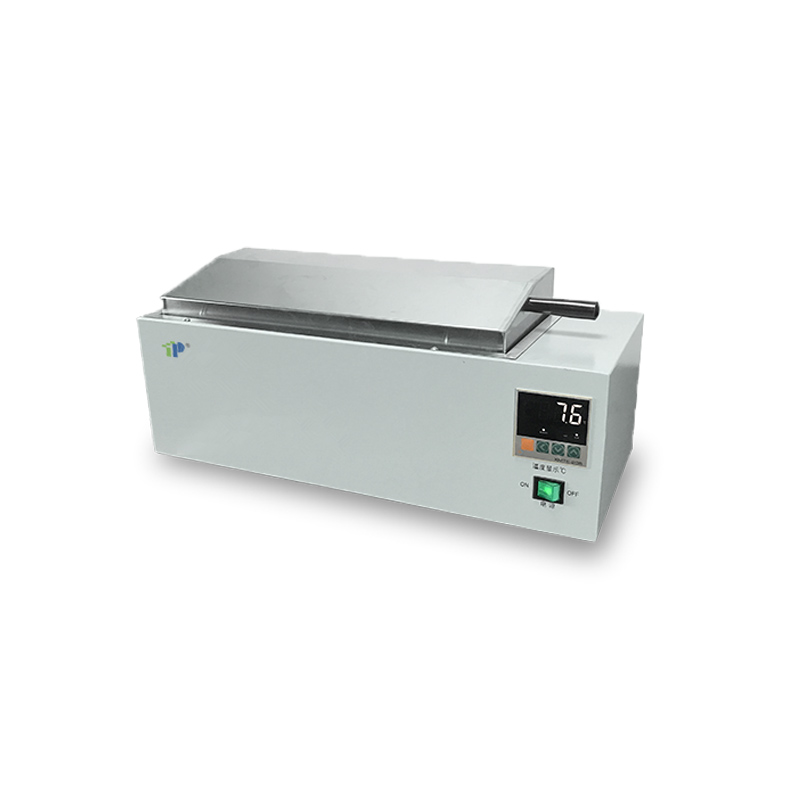

PH Series / POYNH Series
TOP
Characteristic:
The water tank and top cover of the studio are made of SUS304 stainless steel, which has excellent corrosion resistance.
Accurate temperature control, digital display, automatic temperature control.
Easy to operate and safe to use.
The maximum heating power is 1500W, and the studio volume is 600*300*150/600*300*210 (mm).
The difference between the ordinary type and the S type is that the S type is sealed with a double-layer insulation cover, which is not hot to the touch at high temperatures, has good sealing performance, and has a more accurate temperature.
The partition is made of 2MM aluminum plate, which is strong and reliable and can carry 30KG objects. (available in 600 series)
The POYNH water tank is made of 304 stainless steel inside and outside, and the partition is made of 1.5MM 304 plate, which is strong and reliable and can carry 30KG objects. (available in 600 series)
Characteristic:
The water tank and top cover of the studio are made of SUS304 stainless steel, which has excellent corrosion resistance.
Accurate temperature control, digital display, automatic temperature control.
Easy to operate and safe to use.
The maximum heating power is 1500W, and the studio volume is 600*300*150/600*300*210 (mm).
The difference between the ordinary type and the S type is that the S type is sealed with a double-layer insulation cover, which is not hot to the touch at high temperatures, has good sealing performance, and has a more accurate temperature.
The partition is made of 2MM aluminum plate, which is strong and reliable and can carry 30KG objects. (available in 600 series)
The POYNH water tank is made of 304 stainless steel inside and outside, and the partition is made of 1.5MM 304 plate, which is strong and reliable and can carry 30KG objects. (available in 600 series)
Model | Temperature control range (℃) | Heating power (w) | Accuracy (℃) | Working Dimensions (cm) L*W*H | Overall dimensions (cm) L*W*H | Remark |
PH-W420 | Room temperature -100 | 800 | ±0.5 | 42*18*15 42*18*21 | 57*23*25 59*25*31 | Export product |
PH-W420S | Room temperature -100 | 800 | ±0.5 | 42*18*15 42*18*21 | 59*25*23 59*25*29 | Export product |
POYNH-420 | Room temperature -100 | 800 | ±0.5 | 42*18*15 42*18*21 | 59*25*25 59*25*31 | Export product |
PH-W600 | Room temperature -100 | 1500 | ±0.5 | 60*30*15 /60*30*21 | 75*36*27 /77*37*33 | Export product |
PH-W600S | Room temperature -100 | 1500 | ±0.5 | 60*30*15 /60*30*21 | 75*36*25 /77*37*31 | Export product |
POYNH-600 | Room temperature -100 | 1500 | ±0.5 | 60*30*15 /60*30*21 | 77*36*27 /77*37*33 | Export product |
Model | Temperature control range (℃) | Heating power (w) | Accuracy (℃) | Working Dimensions (cm) L*W*H | Overall dimensions (cm) L*W*H | Remark |
PH-W420 | Room temperature -100 | 800 | ±0.5 | 42*18*15 42*18*21 | 57*23*25 59*25*31 | Export product |
PH-W420S | Room temperature -100 | 800 | ±0.5 | 42*18*15 42*18*21 | 59*25*23 59*25*29 | Export product |
POYNH-420 | Room temperature -100 | 800 | ±0.5 | 42*18*15 42*18*21 | 59*25*25 59*25*31 | Export product |
PH-W600 | Room temperature -100 | 1500 | ±0.5 | 60*30*15 /60*30*21 | 75*36*27 /77*37*33 | Export product |
PH-W600S | Room temperature -100 | 1500 | ±0.5 | 60*30*15 /60*30*21 | 75*36*25 /77*37*31 | Export product |
POYNH-600 | Room temperature -100 | 1500 | ±0.5 | 60*30*15 /60*30*21 | 77*36*27 /77*37*33 | Export product |
