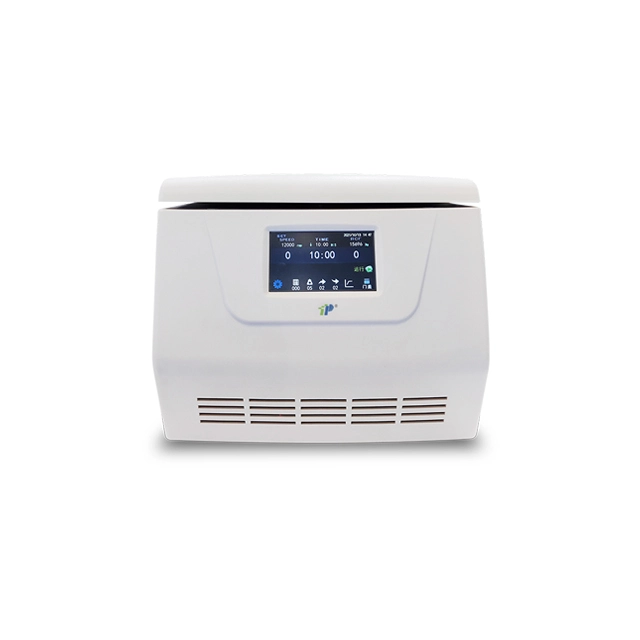

Benchtop High-speed Centrifuge


Model: TG-16
Max speed: 16500 r/min
Max. RCF: 24760*g
Maximum capacity: 6*100ml (8000rpm)
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TG-16

  • TOP

TOP INSTRUMENT Benchtop High-speed Centrifuge is a laboratory equipment used for separating components of a liquid or a mixture based on their density. It is commonly used in research labs, medical labs, and industrial settings for applications such as DNA extraction, protein purification, and blood cell separation. It is designed to be user-friendly and easy to operate, with programmable settings and safety features to prevent accidents.


Characteristic:

  • Maintenance-free frequency conversion motor, LCD touch screen operation.

  • Electronic security door lock, independent motor control.

  • Automatic recognition of the rotor to prevent overspeeding.

  • Elastic rotor fixing method, convenient and quick rotor replacement.

  • 40 levels of speed can be adjusted, 1000 sets of commonly used programs can be stored and recalled, suitable for more application scenarios.

  • The three-axis gyroscope dynamically monitors the balance state throughout the whole process, and the response value can be adjusted.

  • Automatic fault diagnosis and automatic recording.

  • It can perform centrifugation with 5 speeds and time steps, and the curve display.

  • Can store 1000 usage records and export them via USB.

  • Password lock function, you can set a password lock on the host to prevent misuse.

  • Steel body, the front panel is injection-molded with engineering plastics, which is safe and beautiful.

  • Stainless steel centrifugal chamber.

  • RCF can be set and displayed directly, no fog RPM/RCF conversion.

  • Parameters such as speed, centrifugal force, time, and speed up/down can be changed during operation.


Maximum speed

16500 r/min

Max. RCF

24760*g

Maximum capacity

6*100ml (8000rpm)

Speed accuracy

±10 r/min

Timing range

1min~99H59 min

Noise

≤60dB (A)

Power supply

AC 220V 50HZ 10A

Power

500W

Dimensions

445*360*315(L*W*H)mm

Weight

29kg




Rotor

Capacity

Max. Speed

Max. RCF

No. 1 Angle rotor

12*1.5ml/2.2ml

16500rpm

19000*g

No. 2 Angle rotor

12*5ml

15000rpm

18240*g

No. 4 Angle rotor

24*1.5/2.2ml

16000rpm

24760*g

No. 4-1 Angle rotor

12*10ml

13000rpm

15630*g

No. 4-2 Angle rotor

36*1.5/2.2ml

No. 5-1 Angle rotor

6*50ml (pointed bottom/round bottom)

12000rpm

15700*g

No. 5-2 Angle rotor

48*1.5/2.2ml

No. 6-1 Angle rotor

4*100ml

10000rpm

11020*g

No. 6-2 Angle rotor

8*50ml (pointed bottom/round bottom)

No. 6-3 Angle rotor

12*15ml

No. 6-4 Angle rotor

24*10ml

No. 7 Angle rotor

6*10ml

16000rpm

18950*g

No. 8-1 Angle rotor

8*15ml

13000rpm

14930*g

No. 8-2 Angle rotor

6*30ml

No. 9 Angle rotor

4*0.2mlPCR8 tube

13000rpm

14640*g

No. 10 Angle rotor

6*100ml

8000rpm

7720*g

No. 11 Enzyme labeled horizontal rotor

2*2*48 holes

4000rpm

1500*g




NO.T.12.001.5/002.2H

1

NO.T.12.005H

2

NO.T.24.001.5/002.2H

3

NO.T.12.010H

4

NO.T.36.001.5/002.2H

5

NO.T.06.50H

6

NO.T.06.50H

7

NO.T.48.001.5/002.2H

8

NO.T.04.100H

9

NO.T.08.050H

10

NO.T.08.050H

11

NO.T.12.015H

12

NO.T.24.010H

13

NO.T.06.010H

14

NO.T.08.015H

15

NO.T.06.030H

16

NO.04,000.2H

17

NO.T.06.100H

18

NO.T.148.005H

19
