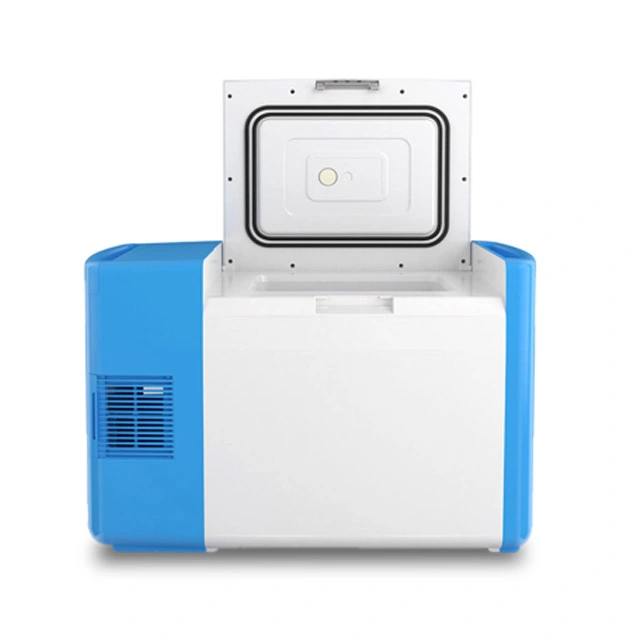

Portable Vehicle Mounted Ultra-low Temperature Refrigerator

Model: TW-W25

TOP INSTRUMENT Portable Vehicle Mounted Ultra-low Temperature Refrigerator is a specialized refrigeration unit designed to be mounted in a vehicle and used for the transportation of temperature-sensitive medical supplies, vaccines, and other products that require refrigeration. It is designed to maintain a stable temperature range as low as -20°C or even lower, and can be powered by the vehicle's electrical system or an external power source.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TW-W25

  • TOP

Characteristic:


  • Applications

It is suitable for scientific research institutions, ultra-low temperature experiments of special materials, electronics industry, chemical industry, military industry, university experiments, biological engineering, pelagic fisheries, etc.

It can be used to preserve viruses, germs, red blood cells, white blood cells, skin, bones, bacteria, semen, biological products, ocean products, low temperature tests of electronic devices, etc.

  • Temperature control

Microcomputer digital control, real-time temperature display, the adjustment unit is 0.1 ℃.

The temperature inside the box is adjustable, and the temperature difference between start and stop can be set.

The alarm temperature value can be set as required.

  • Security system

It has a complete alarm system, with buzzer sound and light flashing alarm function.

It can realize high and low temperature alarm, sensor failure alarm and other functions.

Multiple protection functions (password protection, frequent start-up protection, and the refrigeration system keeps running when the sensor fails.)

  • Cooling system

The extra-thick foam layer and the double-seal design of the door effectively protect the temperature inside the box.

Optimized self-cascade refrigeration system, imported compressors, strong and efficient refrigeration capacity.

Reasonable evaporator design ensures effective flow of refrigerant and good temperature uniformity in the box.

Unique fluorine-free and environmentally friendly mixed refrigerant.

Single compressor system, less components, low failure rate, low energy consumption.

The German EBM silent fan is adopted, with stable and long-lasting performance and low night noise.

  • Humanized design

The built-in adjustable stainless steel shelf can be adjusted as needed, flexible and convenient to use, and easy to clean.

Food grade 304 stainless steel liner, safe and secure.

Universal caster design, easy to move.

Safety door lock condition gauge to prevent random opening.

The air pressure balance design in the box also has the function of a test hole, which is convenient to use.

LED temperature display, easy to observe, clear and intuitive.

Suitable for 10℃~30℃ environment.

Optionally install a digital temperature recorder to record and save performance data under special circumstances, with a USB interface. U disk can be connected for data copy analysis when needed.

Wide voltage band design, suitable for use under 187V~242VAC voltage.




Type

horizontal

Applicable place

household

Volume

20L

Internal temperature

-45℃to-60℃, adjustable

Cooling method

direct cooling

Power supply

220V/50HZ

Power

240W

Power consumption

3.4kw.h/24h

Protection class

Class I

Climate type

N

Refrigerant

CFC-free and environmentally friendly refrigerant

Compressor

DLE7.5CN

Refrigeration system

direct cooling system

Temperature control

Kaide KHT11IB

Temperature display

digital tube display

Number of hanging baskets

/

Outer box material

PVC

Inner box material

304

Casters

/

Net/Gross

35kg/45kg

Internal size

325*220*355mm

External size

780*410*515mm

Pack size

/

Other


Temperature Control System

Kaide

Safety system

  • It has a complete alarm system, with buzzer sound and light flashing alarm function;

  • It can realize high and low temperature alarm, sensor failure alarm and other functions;

  • Multiple protection functions (password protection, frequent startup protection, refrigeration system keeps running when the sensor fails)

Refrigeration system

Direct cooling system

Humanized design

  • Food grade 304 stainless steel liner, safe and guaranteed;

  • Heavy-duty caster design, easy to move;

  • Digital tube temperature display, easy to observe, clear and intuitive
