PH Composite Electrode (Blade Spear)/pH Electrode
You are here: home » Products » PH And Electrochemistry » PH Composite Electrode (Blade Spear)/pH Electrode

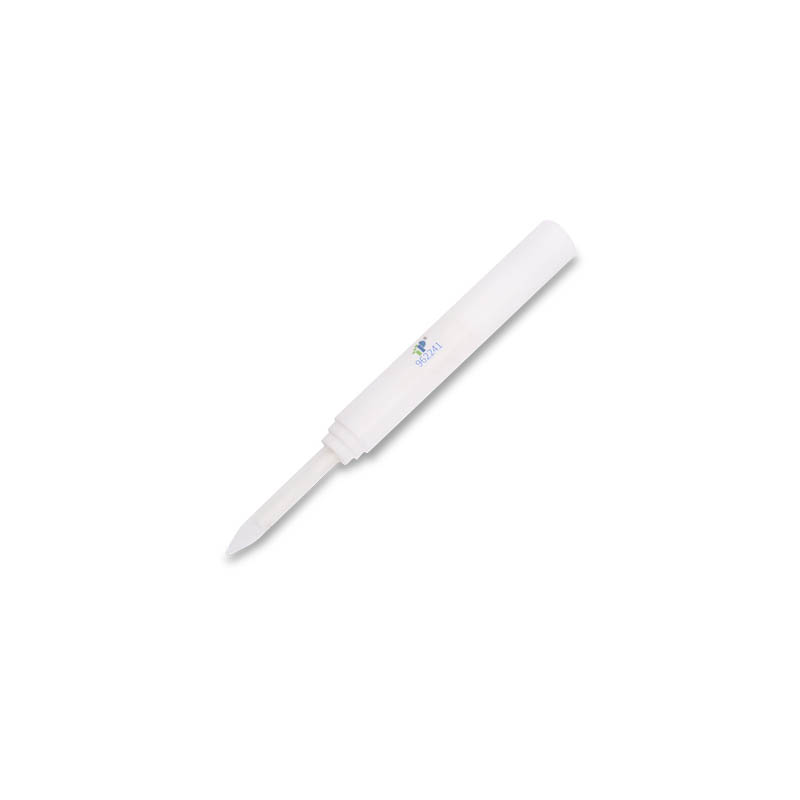

PH Composite Electrode (Blade Spear)/pH Electrode

Model: 962241

TOP INSTRUMENT PH Composite Electrode (Blade Spear)/pH Electrode is a type of pH electrode that is designed to measure the pH of a solution. It typically consists of a glass bulb and a reference electrode, which are connected to a meter or other measuring device. These electrodes are commonly used in laboratory settings, as well as in industrial applications such as water treatment and food processing.
  • 962241

  • TOP


  • pH electrodes has the pH indicator electrode, composite electrode, and 3 in1 pH composite electrode.

  • pH indicator electrode needs to cooperate with reference electrode.

  • Composite electrode combines the pH indicator electrode, reference electrode.

  • 3 in 1 pH composite electrode combines the pH indicator electrode, reference electrode, and temperature probe.

  • Temperature probes can adjust pH measurements by correcting the electrode slope according to the measured temperature.

  • The connector must be compatible with the meter you are using.

  • S7 【S7-BNC(Q9) cable】

  • BNC(Q9)

pH Range0~11
Fill Solution3 M KCl
Sensor materialPOM&316 stainless steel
Working Temp.0~60 ℃
Junction materialCeramic
Reference TypeLonglife Ref.
DimensionΦ11*80 mm
(Measuring tip)
Connector TypeBNC(Q9)
