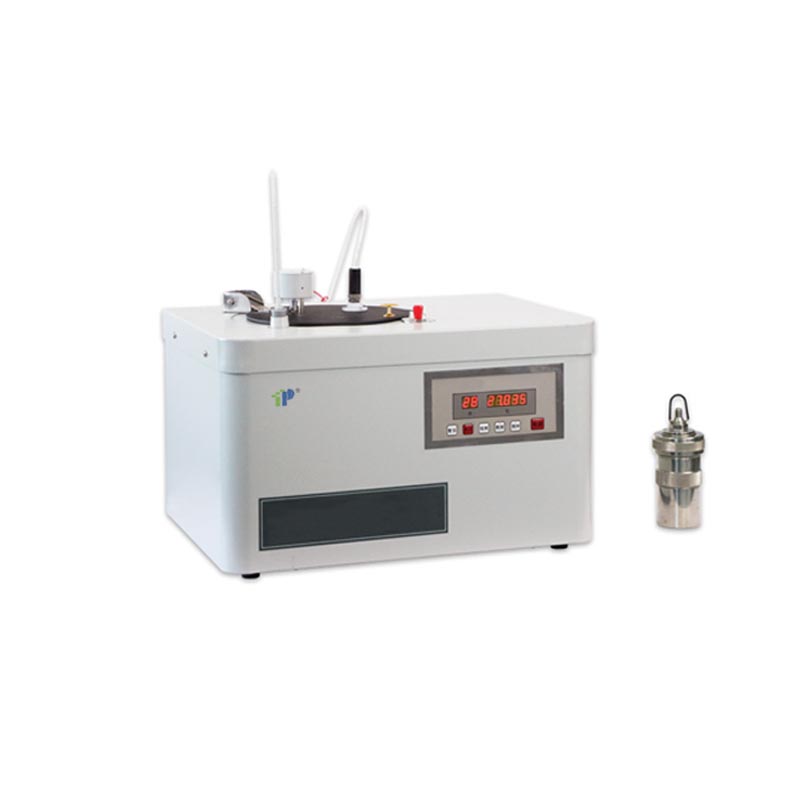

Oxygen Bomb Calorimeter

Model: PRY-1A

TOP INSTRUMENT Oxygen Bomb Calorimeter is a device that measures the heat of combustion of a substance by igniting it in a high-pressure oxygen environment. The heat capacity of the instrument is 14400 J/K~14500 J/K, and it is suitable to determine calorific value of combustible materials such as petroleum products without water (gasoline, jet fuels, diesel oil and fuel oils, etc.), coal, coke and paraffin, etc.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PRY-1A

  • TOP

Characteristic:


  • This instrument adopts sealed oxygen bomb. The whole structure adopts stainless steel material. The strength is enough to resist the max pressure (60~70 atmospheric pressure) when the solid burning. And it can resist the bigger pressure when liquid fuel burning.

  • The inner water cylinder is composed of stainless steel sheet.The cross section is pyriform and the capacity is 3kg. The water cylinder is equipped with electric stirrer inside. It ensures the temperature in the water cylinder uniform.

  • The external water jacket is double layer container. It filled with water when doing determination.It make the water temperature in the cylinder uniform by water jacket stirrer and form the constant temperature environment meeting the requirements of test.




Power supply

AC(220±5%)V, 50Hz

Total power consumption

≤150W

Heat capacity

14400 J/K~14500 J/K

Resolution

0.001 K

Measurement accuracy

≤ 60J/g

Temperature measurement range

10 ℃~35 ℃

Repeatability

≤0.2% (Grade C)

Pressure endurance of oxygen bomb

20 MPa

Ambient temperature

(15~28) ℃, the fluctuation is not more than 1 ℃ during one test

Data saved

31 pieces

Relative humidity

≤85%

Dimension

600mm*460mm*430mm

 (Note: Pellet press machine is optional accessory)
