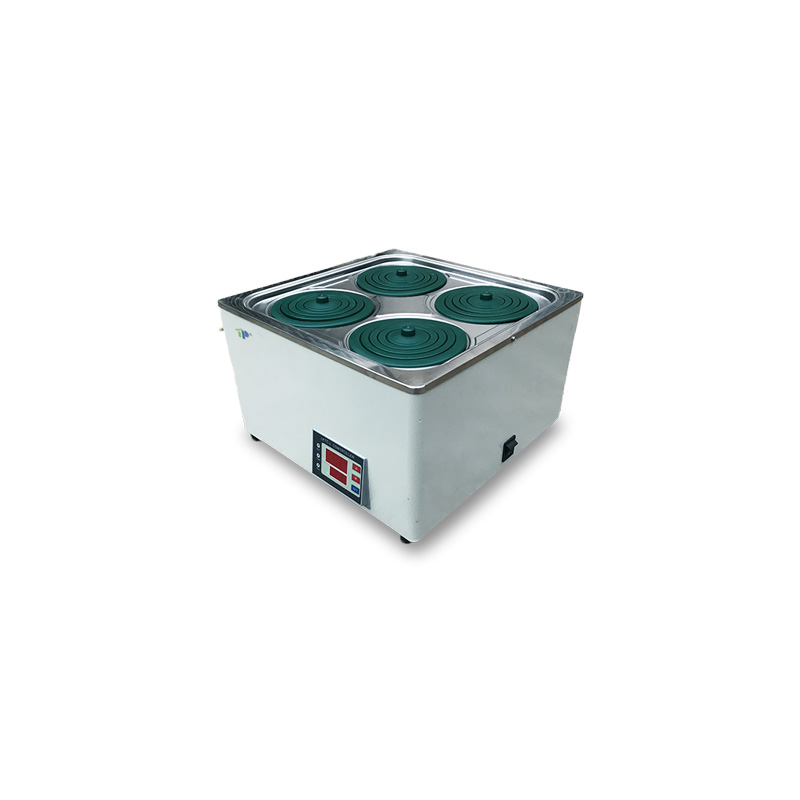

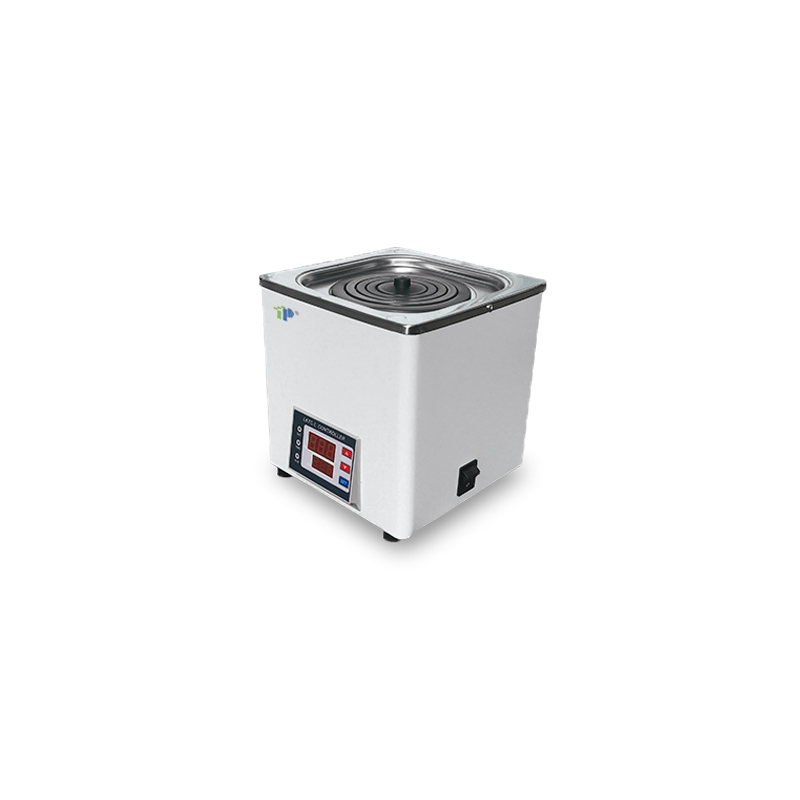

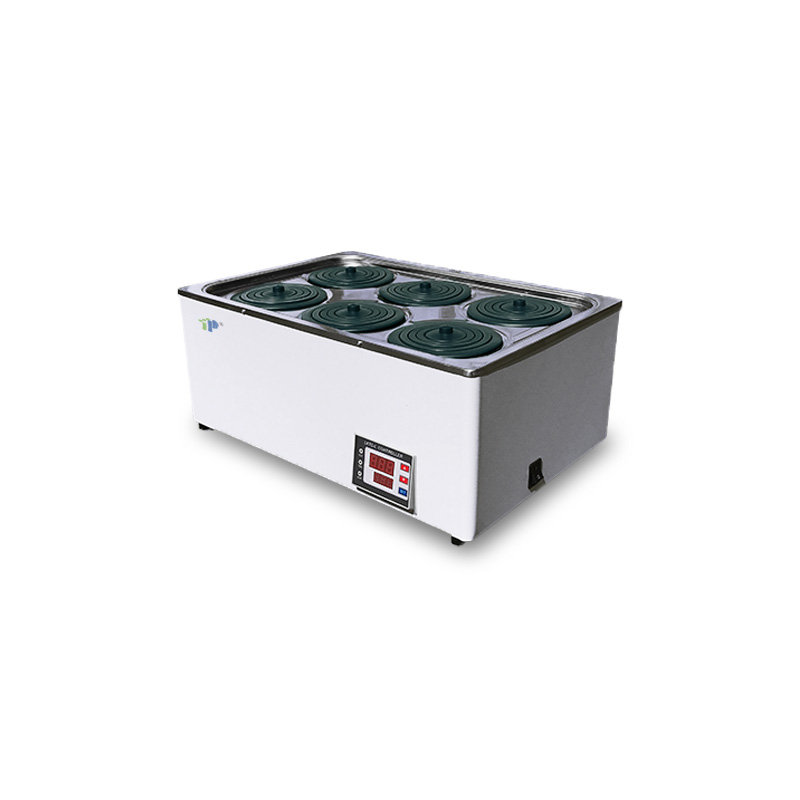

Thermostatic Water Bath PHH Series

Model: PHH Series

TOP INSTRUMENT Thermostatic Water Bath PHH Series is a specialized laboratory tool used for maintaining a constant temperature for samples. The water bath has a one-time molding design, which means that it is made from a single piece of material for durability and easy cleaning. It is commonly used in research labs, medical labs, and industrial settings where precise temperature control is required for the growth and maintenance of samples.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PHH Series

  • TOP

Characteristic:


  • The box body is made of high-quality cold-rolled steel plate, die stamped, arc-shaped and rounded, no welding, and made in one go. The surface is baked with paint and has strong anti-rust ability.

  • The studio is made of high-quality stainless steel plate with rounded corners, smooth, smooth and easy to clean.

  • Inline steel and brass tubes are used as heat-sensing elements, which are installed under the partition in the inner chamber of the box. Directly immersed in water, the heat transfer is fast and the sensitivity is high.

  • The electric heating tube is made of U-shaped steel pipe, sintered magnesium oxide and electric heating wire. It consumes less heat energy when directly immersed in water.

  • The water outlet pipe is a stretch type, which is beautiful, convenient and durable.

  • The temperature control is manufactured using microcomputer intelligent digital technology and has industrial PID self-tuning and LED window indication functions.

  • It has high precision, strong anti-interference ability, and is also very convenient to operate.

  • The lid is a ferrule that can fit different sizes of measuring cups.

  • The lid is made of silicone, which is environmentally friendly and non-toxic. Its sealing performance is better than that of plastic lids, stainless steel lids, and aluminum lids, and it is not hot to the touch even when the heated water temperature is high.




Indicators\model

PHH-1

PHH-2

PHH-4

PHH-6

Studio volume

3.5L

6.8L

13L

20L

Number of holes

1

2

4

6

Heating power

300W

600W

800W

1200W

Temperature control range

Room temperature~100℃

Room temperature~100℃

Room temperature~100℃

Room temperature~100℃

Constant temperature resolution

0.1℃

0.1℃

0.1℃

0.1℃

Control accuracy

±0.5℃

±0.5℃

±0.5℃

±0.5℃

Heating rate

1℃/min

1℃/min

1℃/min

1℃/min

Power supply

AC 220V 50Hz

AC 220V 50Hz

AC 220V 50Hz

AC 220V 50Hz

Working size mm

160*160*140

305*160*140

305*305*140

470*305*140
