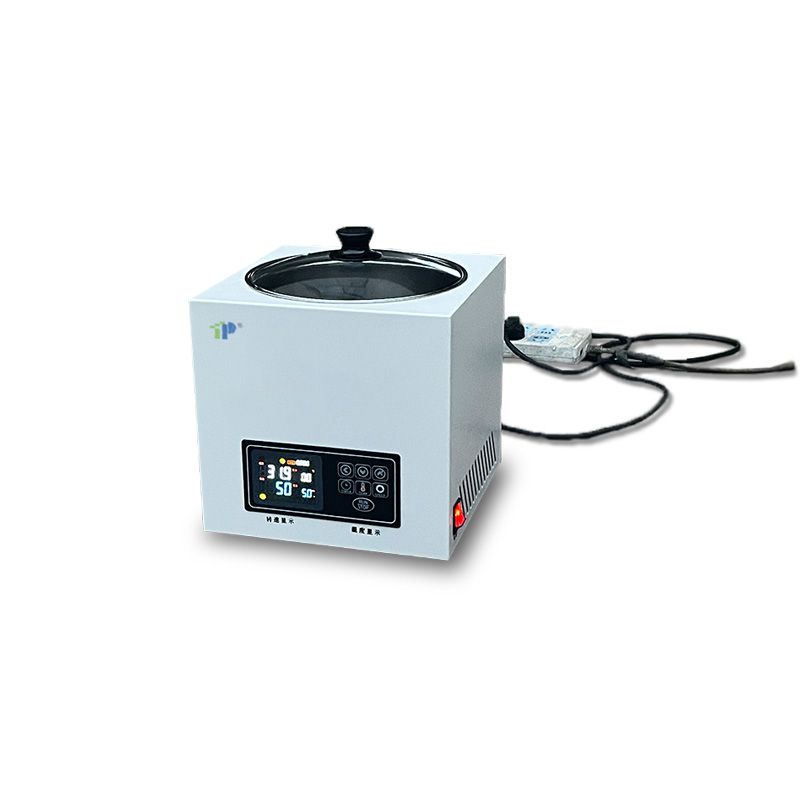

Magnetic Stirring Water Bath


· Model: PHJ-1A / 1AB
· Number of holes: 1 hole (Single hole)
· Rotating speed: 0-2400rpm、50-2400rpm
· Temperature range: Water bath: RT+5--100℃ Fluctuation: ±0.5℃
· Heating power: 400W
· Maximum mixing volume: 2000ml*1

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PHJ-1A / 1AB

  • TOP

Magnetic Stirring Water Bath is mainly suitable for laboratories and laboratories in major universities, scientific research enterprises and institutions. It is widely used in stirring, drying, concentration, distillation, impregnation of chemical reagents, impregnation of pharmaceuticals and biological products. It can also be used for constant temperature of water baths. Heating and other temperature tests. It is an ideal laboratory experimental equipment for stirring, distilling, drying, concentrating and soaking various chemical samples and biological products.


Characteristic:

  • Single hole design, with two functions of water bath heating and magnetic stirring.

  • Infinite speed regulation.

  • Heat evenly. Suitable for experiments at the same temperature but different speeds. Can work for a long time at a high temperature of 100 degrees.

  • The agitator is made of refined polytetrafluoroethylene and high-quality magnetic steel, which has the characteristics of high temperature resistance, wear resistance, chemical corrosion resistance, and strong magnetism.

  • The instrument adopts a LCD color screen with high brightness for easy observation. It has 30 programming modes and can cycle up to 99 times. It can work intermittently in both forward and reverse directions, and the program controls the temperature rise and fall rate.

  • High temperature protection and automatic power-off function; Water level protection function. (Optional)

  • External sensor probe and fixed bracket. (Optional)

  • The magnetic levitation secondary stirring device achieves simultaneous stirring of the solution in the pot and beaker, increasing temperature uniformity. (Optional)

  • Suitable for a three mouth round bottom beaker holder set, convenient for fixing and clamping. (Optional)



Model

PHJ-1A

PHJ-1AB

Number of holes

1hole

Operating Voltage

220V/50HZ

Rotating speed

0-2400rpm

50-2400rpm

Motor Power

40W*1

Motor configuration

Brushless Motor

Working size

Single pot diameter 22CM, height 13CM, heating ring inner diameter: 16CM (can hold beakers less than 16cm in diameter)

Timing range

Type A series timing range: 0--999min, Type AB series timing range: 0-9999min

Temperature range

Water bath: RT+5--100℃ Fluctuation: ±0.5℃

Heating power

400W

Maximum mixing volume

2000ml*1

Drain outlet

No

Temperature Sensor

Default: built-in probe, optional external sensor + sensor bracket

Note:

The maximum mixing volume can also be customized according to customer needs;

Product dimensions are subject to manual measurement and errors are inevitable. The actual product will be subject to receipt!
