PHD Series
TOP
Characteristic:

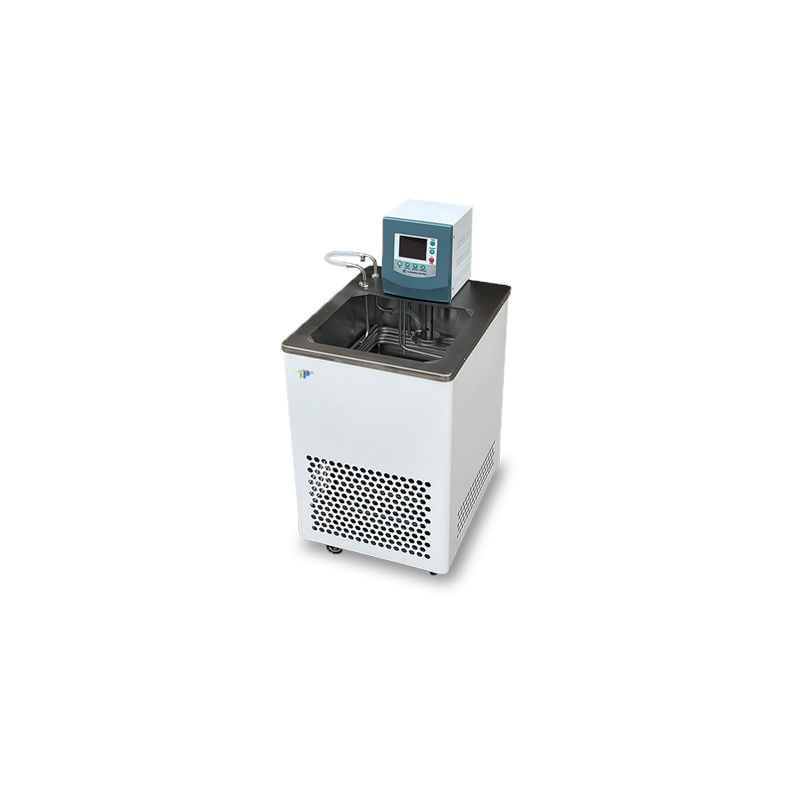

The low-temperature thermostat adopts a fully enclosed compressor unit for refrigeration, which has fast cooling speed, low noise and easy operation. The coolant in the tank can be introduced externally to cool the test container outside the machine.
It has an over-temperature alarm system to ensure the safety of the instrument.
Touch the soft keys to quickly set the temperature, making it easy to operate.
Window LED digital display temperature measurement value and temperature setting value.
The microcomputer of the low-temperature thermostatic bath corrects the deviation of the temperature measurement value, and the digital display accuracy is 0.1℃/0.01℃. It can be used as liquid level alarm and dry burning prevention system.
Characteristic:
The low-temperature thermostat adopts a fully enclosed compressor unit for refrigeration, which has fast cooling speed, low noise and easy operation. The coolant in the tank can be introduced externally to cool the test container outside the machine.
It has an over-temperature alarm system to ensure the safety of the instrument.
Touch the soft keys to quickly set the temperature, making it easy to operate.
Window LED digital display temperature measurement value and temperature setting value.
The microcomputer of the low-temperature thermostatic bath corrects the deviation of the temperature measurement value, and the digital display accuracy is 0.1℃/0.01℃. It can be used as liquid level alarm and dry burning prevention system.
Model | Temperature range (°C) | Temperature fluctuation (℃) | Temperature resolution (℃) | Working chamber size (mm) | Tank depth (mm) | Pump flow rate (L/min) | Opening size (mm) |
PHD-0506 | -5~100 | ±0.05 | 0.01 | 250*200*150 | 150 | 4 | 135*135 |
PHD-0510 | 250*200*200 | 200 | 8 | 135*135 | |||
PHD-0515 | 280*250*220 | 220 | 8 | 235*160 | |||
PHD-0520 | 280*250*280 | 280 | 10 | 235*160 | |||
PHD-0530 | 400*325*230 | 230 | 12 | 310*280 | |||
PHD-1006 | -10~100 | 250*200*150 | 150 | 4 | 135*135 | ||
PHD-1010 | 250*200*200 | 200 | 8 | 135*135 | |||
PHD-1015 | 280*250*220 | 220 | 8 | 235*160 | |||
PHD-1020 | 280*250*280 | 280 | 10 | 235*160 | |||
PHD-1030 | 400*325*230 | 230 | 12 | 310*280 | |||
PHD-2006 | -20~100 | 250*200*150 | 150 | 4 | 135*135 | ||
PHD-2010 | 250*200*200 | 200 | 8 | 135*135 | |||
PHD-2015 | 280*250*220 | 220 | 8 | 235*160 | |||
PHD-2020 | 280*250*280 | 280 | 10 | 235*160 | |||
PHD-2030 | 400*325*230 | 230 | 12 | 310*280 | |||
PHD-3006 | -30~100 | 250*200*150 | 150 | 4 | 180*140 | ||
PHD-3010 | 250*200*200 | 200 | 8 | 180*140 | |||
PHD-3015 | 280*250*220 | 220 | 8 | 235*160 | |||
PHD-3020 | 280*250*280 | 280 | 10 | 235*160 | |||
PHD-3030 | 400*325*230 | 230 | 12 | 310*280 | |||
PHD-4006 | -40~100 | 250*200*150 | 150 | 4 | 180*140 | ||
PHD-4010 | 250*200*200 | 200 | 8 | 180*140 | |||
PHD-4015 | 280*250*220 | 220 | 8 | 235*160 | |||
PHD-4020 | 280*250*280 | 280 | 10 | 235*160 | |||
PHD-4030 | 400*325*230 | 230 | 12 | 310*280 |
