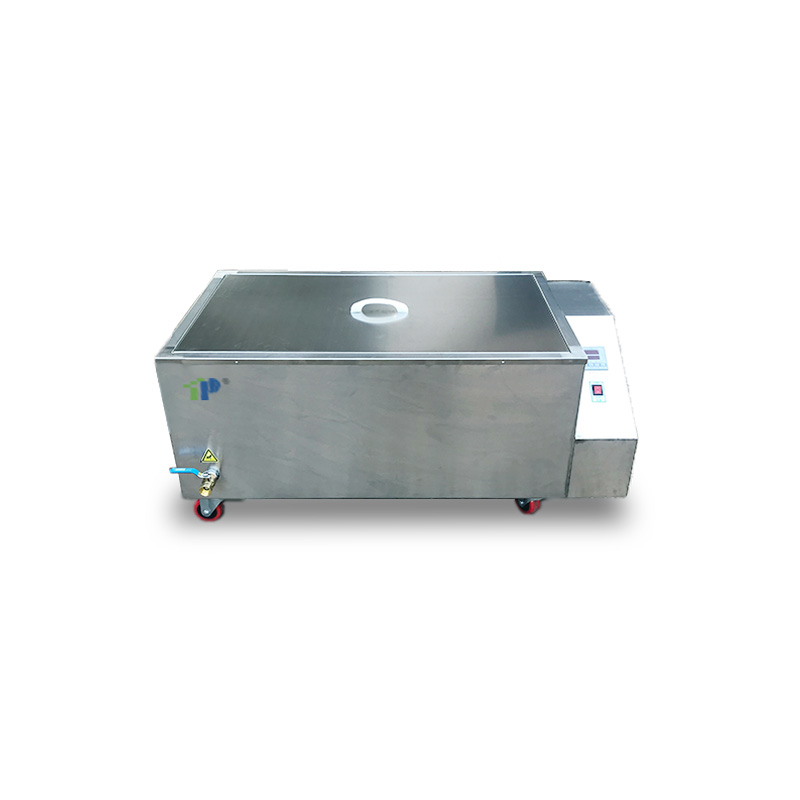

Large Capacity All Stainless Steel Constant Temperature Water Bath

Model: PXG Series

TOP INSTRUMENT Large Capacity All Stainless Steel Constant Temperature Water Bath is a laboratory equipment used for precise temperature control of samples or materials in water. This type of water bath is designed to have a large capacity and is made entirely of stainless steel, making it resistant to corrosion and easy to clean. The large capacity makes it ideal for experiments that require a high volume of samples or materials to be tested simultaneously.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PXG Series

  • TOP

Characteristic:


  • Newly designed precision constant temperature control system, the temperature of the entire measuring range is accurately controllable, suitable for sample storage, analysis, testing and measurement identification above ambient temperature, as well as the needs of enterprise production.

  • Digital display of set temperature and actual temperature, setting resolution ±0.1℃.

  • The use of self-designed and developed high-power, high-stability, and long-life heating devices ensures safe, efficient, and long-term operation of the system.

  • The instrument's working status and key function indication functions are easy to operate and clearly displayed.

  • Over-temperature protection, sensor open circuit, short circuit protection and other functions ensure the safe operation of the instrument.

  • The large-capacity liquid tank liner, work surface, electric heater and other parts that may come into contact with the working medium are made of 304 stainless steel, which is durable.

  • The external body is made of 304 stainless steel material technology, making the appearance more beautiful and elegant.

  • High-quality thermal insulation technology can effectively reduce the heat loss inside the bath, save electricity and energy, and make the temperature field inside the bath more uniform.

  • High-strength universal wheel feet with locking device can be easily moved and fixed to a suitable position.

  • Equipped with a high-performance circulation pump to help achieve temperature uniformity in the tank. The pump flow rate is 20L/MIN within BXG-250, and 50L/MIN above this specification. The default is internal circulation, and external circulation is also optional.





Model

Working size (MM)

Overall dimensions (MM)

Heating power

Cycle mode

Temperature control range

Voltage

TXG-50

400*400*300

670*470*400

2KW

Internal circulation

Room temperature -100 degrees

220V

TXG-80

400*400*500

670*470*600

3KW

Internal circulation

Room temperature -100 degrees

220V

TXG-100

500*500*400

770*570*500

4KW

Internal circulation

Room temperature -100 degrees

220V

TXG-150

550*550*500

820*620*600

6KW

Internal circulation

Room temperature -100 degrees

380V

TXG-200

600*600*500

870*670*600

9KW

Internal circulation

Room temperature -100 degrees

380V

TXG-250

680*680*550

950*750*650

9KW

Internal circulation

Room temperature -100 degrees

380V

TXG-300

800*800*500

1070*870*650

9KW

Internal circulation

Room temperature -100 degrees

380V

TXG-350

800*800*550

1070*870*700

12KW

Internal circulation

Room temperature -100 degrees

380V

TXG-400

900*900*560

1170*970*710

12KW

Internal circulation

Room temperature -100 degrees

380V

TXG-450

1000*1000*450

1270*1070*600

12KW

Internal circulation

Room temperature -100 degrees

380V

TXG-500

1000*1000*500

1270*1070*650

15KW

Internal circulation

Room temperature -100 degrees

380V

TXG-600

1000*1000*600

1270*1070*750

15KW

Internal circulation

Room temperature -100 degrees

380V

TXG-700

1000*1000*700

1270*1070*850

15KW

Internal circulation

Room temperature -100 degrees

380V

TXG-800

1000*1000*800

1270*1070*950

18KW

Internal circulation

Room temperature -100 degrees

380V

TXG-900

1000*1000*900

1270*1070*1050

18KW

Internal circulation

Room temperature -100 degrees

380V

TXG-1000

1000*1000*1000

1300*1100*1200

18KW

Internal circulation

Room temperature -100 degrees

380V

TXG-1500

1500*1000*1000

1800*1100*1200

24KW

Internal circulation

Room temperature -100 degrees

380V

TXG-2000

2000*1000*1000

2300*1100*1200

30KW

Internal circulation

Room temperature -100 degrees

380V

Note: Most of this product is customized. You can call to customize it according to your own needs.
