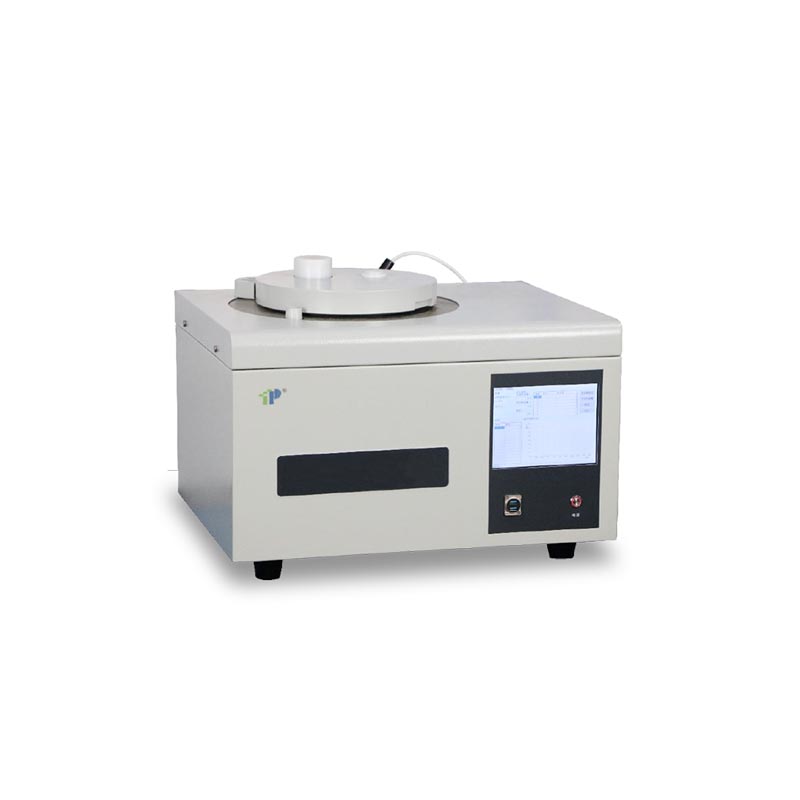

Laboratory Oxygen Bomb Calorimeter

Model: PRY-1A+

TOP INSTRUMENT Laboratory Oxygen Bomb Calorimeter is a device that measures the heat of combustion of a substance by igniting it in a high-pressure oxygen environment. It is suitable to determine calorific value of combustible materials such as petroleum products without water (gasoline, jet fuels, diesel oil and fuel oils, etc.), coal, coke and paraffin, etc.
Availability:
Quantity:
  • PRY-1A+

  • TOP

Characteristic:


  • The instrument adopts technology of single chip machine, touch screen, windows system

  • The test procedure is fully automatic. After placing the sample and inputting the right parameters, the instrument will finish all the procedures without manual interference. It will print the test data directly after test is over.

  • This instrument adopts sealed oxygen bomb. The whole structure adopts stainless steel material.The strength is enough to resist 20MPa hydrostatic test under room temperature.

  • The inner water container is made of stainless steel and the section likes as a pear.Its water volume is 3000g and with electric stirrer to make sure the uniform temperature in water bath.

  • The external water jacket is a double container.It will be filled fully with water when testing,and the stirrer in the water jacket will work to ensure the uniform temperature and create the constant temperature condition for test requirement.




Power supply

AC 220V±5%, 50 Hz

Total power consumption

≤150W

Heat capacity

(14000~15000) J/K

Resolution

0.001 K

Measurement accuracy

≤ 60J/g

Temperature range

10 ℃~35 ℃

Repeatability error

≤0.2% (Grade C)

Pressure endurance of bomb

20 MPa

Temperature measurement range

(15~28) ℃

Relative humidity

≤85%

Overall dimension

600mm*480mm*460mm

(Note: Pellet press machine is optional)
