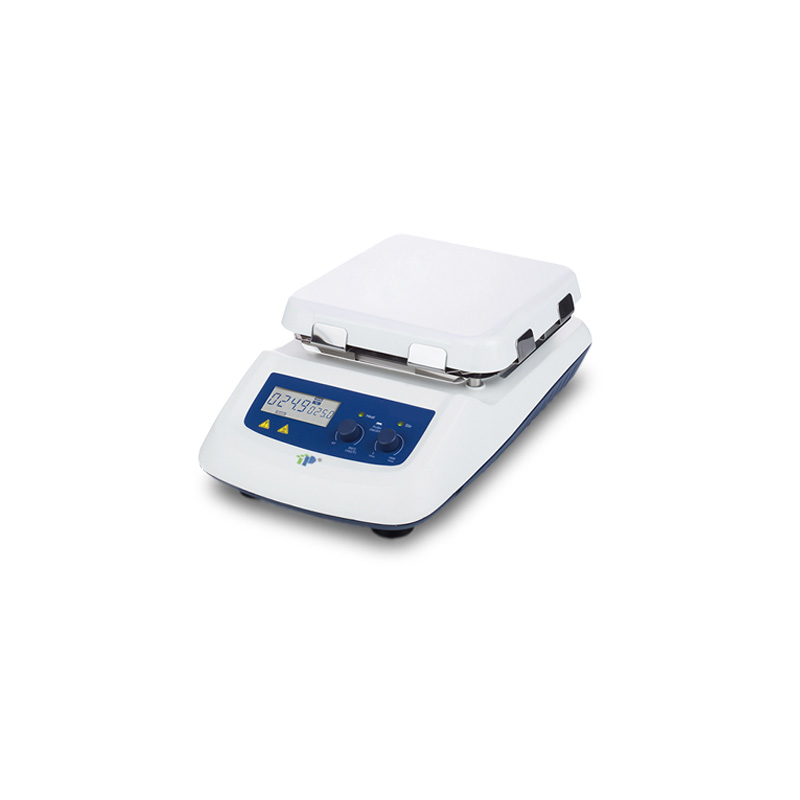

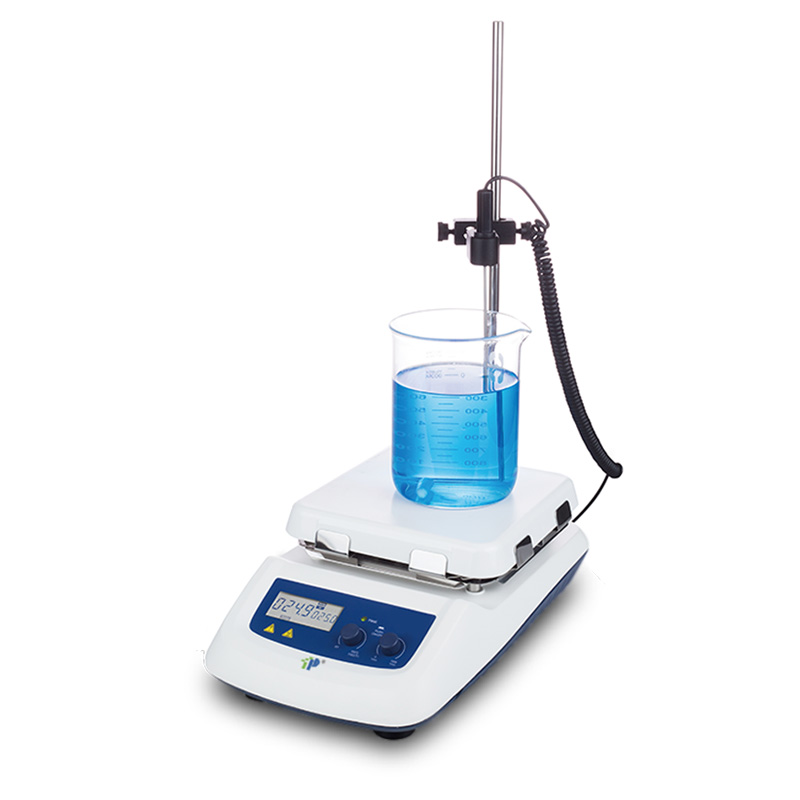

LCD Hotplate Magnetic Stirrer

Model: P7-H550-PRO

TOP INSTRUMENT LCD Hotplate Magnetic Stirrer is a laboratory device that combines both heating and stirring functions in one unit. The device is equipped with an LCD display that shows the temperature and stirring speed, making it easy to monitor the experiment. The hotplate magnetic stirrer is commonly used in scientific research, medical laboratories, and industrial applications. It is designed to be durable, reliable, and easy to use.

Quantity:
Availability:




Inquire Add to Basket

Model:
P7-H550-PRO
Brand:
TOP

Characteristic:

Microprocessor PID controls.
LCD display with speed and temperature control knobs.
Ceramic workplate with a high power of 1050W reaches a maximum temperature of 550°C.
Max. heating temperature of 550°C.
Ceramic workplate of 184*184mm.
Speed is adjustable from 100 to 1500rpm.
"Hot" safety indication on LCD when the plate temperature is above 50°C.
PT1000 external temperature sensor for precise temperature control.
RS232 interface enables data preservation and control by a PC.

New Design LED Digital Display Laboratory Magnetic Heating Collection Stirrer Unsupervised Operation Automatic Large Magnetic Stirrer With LCD Display High Quality Manufactured LCD Digital Magnetic Hotplate Stirrer Heavy Duty Scientific Laboratory Magnetic Stirrer Hotplate Low Price LCD Digital Magnetic Hotplate Stirrer Magnetic Lcd Digital Ceramic Magnetic Stirrer Hot Plate

Workplate dimension [W*D]	184*184mm (7 inch)
Workplate material	Glass ceramic
Motor type	Brushless DC motor
Motor rating input	18W
Motor rating output	10W
Power	1050W
Heating output	1000W
Voltage	100-120/200-240V 50/60Hz
Stirring positions	1
Max. stirring volume [H2O]	20L
Max. magnetic bar [length]	80mm
Speed range	100-1500rpm resolution ±1rpm
Speed display	LCD
Temperature display	LCD
Heating temperature range	Room Temp.-550°C, increment 1°C
Temperature contol accuracy	±1°C (<100°C) ±1% (>100°C)
Overheating protection	580℃
Temperature display resolution	±0.1°C
External temperature sensor	PT1000 (accuracy ±0.2)
"Hot" satety indication	50℃
Data interface	RS232
Protection class	IP21
Dimension [WDH]	215360112mm
Weight	5.3kg
Permissible ambient temperature and humidity	5-40C,80%RH

Workplate dimension [W*D]	184*184mm (7 inch)
Workplate material	Glass ceramic
Motor type	Brushless DC motor
Motor rating input	18W
Motor rating output	10W
Power	1050W
Heating output	1000W
Voltage	100-120/200-240V 50/60Hz
Stirring positions	1
Max. stirring volume [H2O]	20L
Max. magnetic bar [length]	80mm
Speed range	100-1500rpm resolution ±1rpm
Speed display	LCD
Temperature display	LCD
Heating temperature range	Room Temp.-550°C, increment 1°C
Temperature contol accuracy	±1°C (<100°C) ±1% (>100°C)
Overheating protection	580℃
Temperature display resolution	±0.1°C
External temperature sensor	PT1000 (accuracy ±0.2)
"Hot" satety indication	50℃
Data interface	RS232
Protection class	IP21
Dimension [WDH]	215360112mm
Weight	5.3kg
Permissible ambient temperature and humidity	5-40C,80%RH


Blue carrying plate (18900001)	Blue Fixed ring（18900065）	Red quarter pie (18900002)	Purple quarter pie (18900003)

Blue quarter pie（18900004）	Black quarter pie (18900005)	Green quarter pie (18900048)	Golden quarter pie (18900049)

Reaction block for 50mL round bottom flask（18900080）	Reaction block for 100mL round bottom flask (18900081)	Reaction block for 250mL round bottom flask (18900082)	Reaction block for 500mL round bottom flask (18900083)

F101 protective cover (18900019)	PT1000-new	PT1000-B (18900136)	Support clamp of PT1000 (18900017)


Blue carrying plate (18900001)	Blue Fixed ring（18900065）	Red quarter pie (18900002)	Purple quarter pie (18900003)

Blue quarter pie（18900004）	Black quarter pie (18900005)	Green quarter pie (18900048)	Golden quarter pie (18900049)

Reaction block for 50mL round bottom flask（18900080）	Reaction block for 100mL round bottom flask (18900081)	Reaction block for 250mL round bottom flask (18900082)	Reaction block for 500mL round bottom flask (18900083)

F101 protective cover (18900019)	PT1000-new	PT1000-B (18900136)	Support clamp of PT1000 (18900017)
