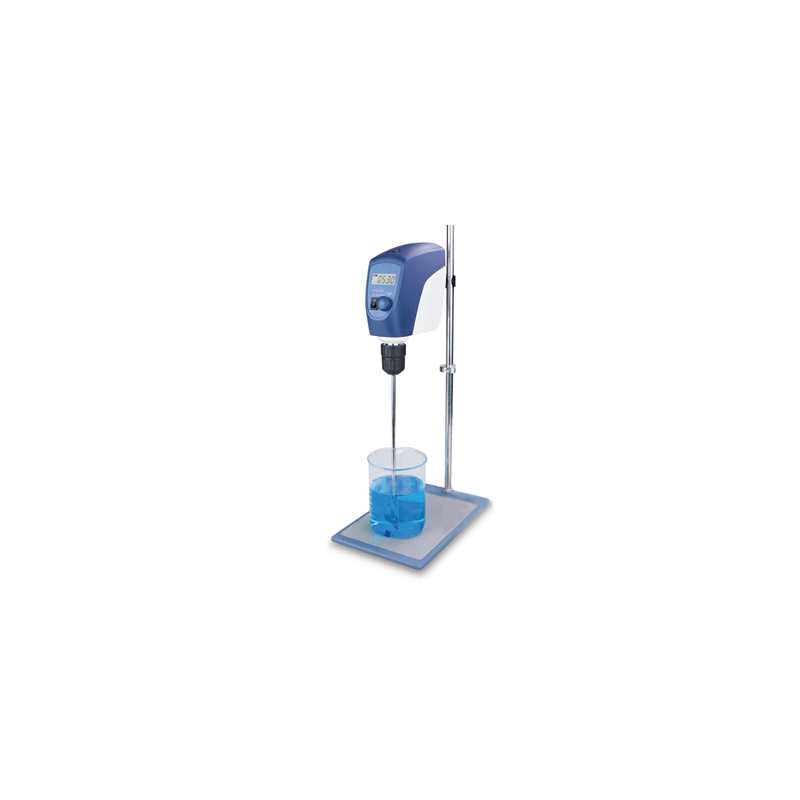

PS20-Pro；PS40-Pro
TOP
Characteristic:
Easy and user friendly operation with LCD digital display of set and actual speeds.
Speed adjustable within 50-2200rpm with precise speed control.
High performance BLDC motor with overload protection.
Speed maintains as the viscosity changes.
RS232 interface to control and data document.
Microprocessor controlled safety circuits prevent splashing.
Powerful torque suitable for stirring of highly viscous liquids.
Characteristic:
Easy and user friendly operation with LCD digital display of set and actual speeds.
Speed adjustable within 50-2200rpm with precise speed control.
High performance BLDC motor with overload protection.
Speed maintains as the viscosity changes.
RS232 interface to control and data document.
Microprocessor controlled safety circuits prevent splashing.
Powerful torque suitable for stirring of highly viscous liquids.
| Specifications | PS20-Pro | PS40-Pro |
| Max. stirring volume [H2O] | 20L | 40L |
| Motor type | brushless DC motor | |
| Motor rating input | 60W | 120W |
| Motor rating output | 50W | 100W |
| Voltage | 100-240V, 50/60 Hz | |
| Power | 70W | 130W |
| Speed range | 50-2200rpm | |
| Speed control accuracy | ±3rpm | |
| Speed display | LCD | |
| Torque display | LCD | |
| Overload protection display | LED indicator | |
| Max. torque | 40N-cm | 60N-cm |
| Max. viscosity | 10000mPa·s | 50000mPa·s |
| Chuck clamping range | 0.5-10mm | |
| Dimension [W*H*D] | 83*220*186mm | |
| Weight | 2.8kg | |
| Protection class | IP21 | |
Permissible ambient temperature and humidit | 5-40℃, 80%RH | |
| Data interface | RS232 | |
| Specifications | PS20-Pro | PS40-Pro |
| Max. stirring volume [H2O] | 20L | 40L |
| Motor type | brushless DC motor | |
| Motor rating input | 60W | 120W |
| Motor rating output | 50W | 100W |
| Voltage | 100-240V, 50/60 Hz | |
| Power | 70W | 130W |
| Speed range | 50-2200rpm | |
| Speed control accuracy | ±3rpm | |
| Speed display | LCD | |
| Torque display | LCD | |
| Overload protection display | LED indicator | |
| Max. torque | 40N-cm | 60N-cm |
| Max. viscosity | 10000mPa·s | 50000mPa·s |
| Chuck clamping range | 0.5-10mm | |
| Dimension [W*H*D] | 83*220*186mm | |
| Weight | 2.8kg | |
| Protection class | IP21 | |
Permissible ambient temperature and humidit | 5-40℃, 80%RH | |
| Data interface | RS232 | |
| Paddle stirrer | shaft length 35cm |
| stirrer diameter 6.8cm | ||
| Material: PTFE coated | ||
| Application: Suitable for samples needed gentle processing at low and medium speeds | ||
| Paddle stirrer | shaft length 40cm |
| stirrer diameter 6.8cm | ||
| Material: 316L stainless steel | ||
| Application: Suitable for samples needed gentle processing at low and medium speeds | ||
| Propeller stirrer | shaft length 400mm |
| stirrer diameter 50mm | ||
| Material: 316L stainless steel | ||
| Application: Standard stirring element used at medium and high speeds | ||
| Propeller stirrer | shaft length 35cm |
| stirrer diameter 6.5cm | ||
| Material: PTFE coated | ||
| Application: Standard stirring element, used at medium and high speeds | ||
| Straight stirrer | shaft length 35cm |
| stirrer diameter 7cm | ||
| Material: PTFE coated | ||
| Application: Ideal for the mixing of low viscosity media at medium and high speeds | ||
| Universal plate stand | Dimension [W*D*H] : 200*310*780mm |
| Material: stainless steel | ||
| Straight stirrer | shaft length 400mm |
| stirrer diameter 50mm | ||
| Material: 316L stainless stee | ||
| Application: Ideal for the mixing of low viscosity media at medium and high speeds | ||
| Centrifugal stirrer | shaft length 40cm |
| stirrer diameter 9cm | ||
| Material: 316L stainless steel | ||
| Application: Two-bladed stirrer of which blades open at an increasing angle as the speed increases. Perfect for stirring in round vessels with narrow necks. Medium to high speeds required. | ||
| Centrifugal stirrer | shaft length 35cm |
| stirrer diameter 8.5cm | ||
| Material: PTFE coated | ||
| Application: Two-bladed stirrer of which blades open at an increasing angle as the speed increases. Perfect for stirring in round vessels with narrow necks. Medium to high speeds required |
| Paddle stirrer | shaft length 35cm |
| stirrer diameter 6.8cm | ||
| Material: PTFE coated | ||
| Application: Suitable for samples needed gentle processing at low and medium speeds | ||
| Paddle stirrer | shaft length 40cm |
| stirrer diameter 6.8cm | ||
| Material: 316L stainless steel | ||
| Application: Suitable for samples needed gentle processing at low and medium speeds | ||
| Propeller stirrer | shaft length 400mm |
| stirrer diameter 50mm | ||
| Material: 316L stainless steel | ||
| Application: Standard stirring element used at medium and high speeds | ||
| Propeller stirrer | shaft length 35cm |
| stirrer diameter 6.5cm | ||
| Material: PTFE coated | ||
| Application: Standard stirring element, used at medium and high speeds | ||
| Straight stirrer | shaft length 35cm |
| stirrer diameter 7cm | ||
| Material: PTFE coated | ||
| Application: Ideal for the mixing of low viscosity media at medium and high speeds | ||
| Universal plate stand | Dimension [W*D*H] : 200*310*780mm |
| Material: stainless steel | ||
| Straight stirrer | shaft length 400mm |
| stirrer diameter 50mm | ||
| Material: 316L stainless stee | ||
| Application: Ideal for the mixing of low viscosity media at medium and high speeds | ||
| Centrifugal stirrer | shaft length 40cm |
| stirrer diameter 9cm | ||
| Material: 316L stainless steel | ||
| Application: Two-bladed stirrer of which blades open at an increasing angle as the speed increases. Perfect for stirring in round vessels with narrow necks. Medium to high speeds required. | ||
| Centrifugal stirrer | shaft length 35cm |
| stirrer diameter 8.5cm | ||
| Material: PTFE coated | ||
| Application: Two-bladed stirrer of which blades open at an increasing angle as the speed increases. Perfect for stirring in round vessels with narrow necks. Medium to high speeds required |
