LCD Digital Hotplate Magnetic Stirrer

Model: P-H-PRO+

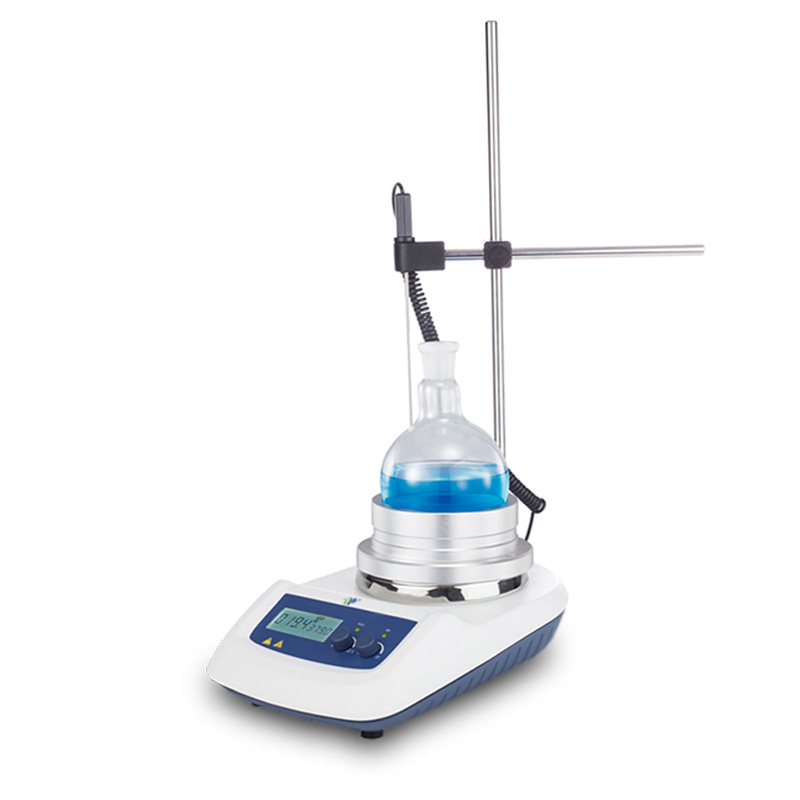

TOP INSTRUMENT LCD Digital Hotplate Magnetic Stirrer is a laboratory equipment that combines heating and stirring functions. It has an adjustable heating power and a magnetic stirrer that can be controlled separately. The device features an LCD screen that displays real-time temperature and stirring speed. It is commonly used in scientific research, medical, and industrial laboratories for various applications such as chemical synthesis, sample preparation, and quality control.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • P-H-PRO+

  • TOP

Characteristic:


  • LCD digital control of speed and temperature.

  • Maintenance free brushless DC motor.

  • RS232 interface enables data preservation, transmission and control by a PC.

  • Speed setting range from 0-1500rpm.

  • RS232 interface provides PC control and data transmission.

  • Ceramic workplate with max. temperature of 340°C.

  • Various optional accessories make it suitable for many applications.

  • "Hot" safety indication on LED when the plate temperature is above 50°C.

  • PT1000 external temperature sensor for precise temperature control at of ±0.2°C.




Workplate dimension

φ135mm (5 inch)

Workplate material

Stainless steel cover with ceramic

Motor type

Brushless DC motor

Motor rating input

18W

Motor rating output

10W

Power

550W

Heating output

500W

Voltage

100-120/200-240V 50/60Hz

Stirring positions

1

Max. stirring volume [H2O]

20L

Max. magnetic bar [length]

80mm

Speed range

100-1500rpm

resolution±1rpm

Speed display

LCD

Temperature display

LCD

Heating temperature range

Room Temp.-340°C,

increment 1°C

Temperature control accuracy


±1°C (<100°C)

±1% (>100°C)

Overheating protection

360℃

Temperature display resolution

±0.1°C

External temperature sensor

PT1000 (accuracy ±0.2)

"Hot" satety indication

50℃

Timer function-

Data interface

RS232

Protection class

IP42

Dimension [W*D*H]

160*280*85mm

Weight

2.8kg

Permissible ambient temperature and humidity

5-40C, 80%RH




18900001 18900065 18900002 18900003
Blue carrying plate (18900001) Blue Fixed ring(18900065) Red quarter pie (18900002) Purple quarter pie (18900003)
18900004 18900005 18900048 18900049
Blue quarter pie(18900004) Black quarter pie (18900005) Green quarter pie (18900048) Golden quarter pie (18900049)
18900080 18900081

18900082

18900083
Reaction block for 50mL round bottom flask(18900080) Reaction block for 100mL round bottom flask (18900081) Reaction block for 250mL round bottom flask (18900082) Reaction block for 500mL round bottom flask (18900083)
18900019-F101 PT1000-new 18900136_PT1000-B 18900017-MSPS01
F101 protective cover (18900019) PT1000-new PT1000-B (18900136) Support clamp of PT1000 (18900017)
