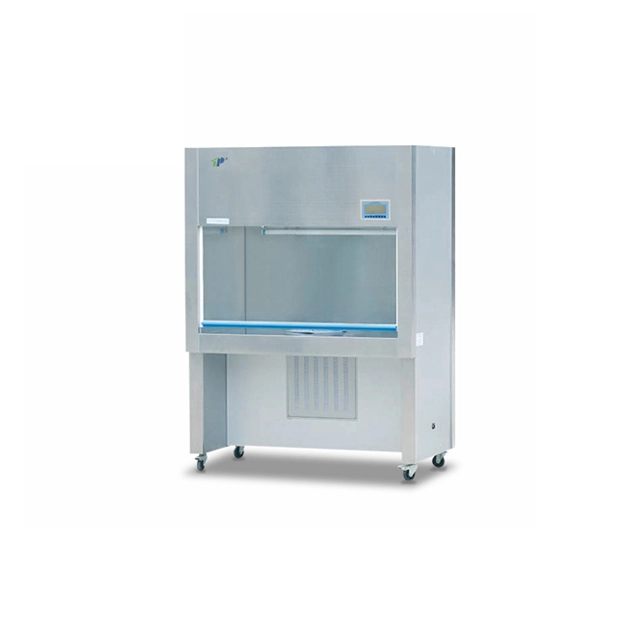

T-1300U
TOP
Characteristic:
Arbitrary positioning sliding door system is adopted.
The shell is welded by cold-rolled plate, the surface is electrostatically sprayed, and the work surface is SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean.
Safety interlocking of lighting and sterilization system, and UV lamp timing function.
Digital display LCD control interface, more humanized design.
The vertical quasi-closed table top and the formation of the downflow air curtain in the operation room can effectively prevent the external gas from entering and clean the operation area.
Equipped with a HEPA high-efficiency air filter and a primary filter for preliminary filtration, which can effectively prolong the service life of the high-efficiency filter.
Characteristic:
Arbitrary positioning sliding door system is adopted.
The shell is welded by cold-rolled plate, the surface is electrostatically sprayed, and the work surface is SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean.
Safety interlocking of lighting and sterilization system, and UV lamp timing function.
Digital display LCD control interface, more humanized design.
The vertical quasi-closed table top and the formation of the downflow air curtain in the operation room can effectively prevent the external gas from entering and clean the operation area.
Equipped with a HEPA high-efficiency air filter and a primary filter for preliminary filtration, which can effectively prolong the service life of the high-efficiency filter.
Cleaning level | Grade 100≥0.5μM (209E U.S. Federal) |
Number of bacteria | ≤5per utensil.hour (90mm utensil) |
The average wind speed | 0.25~0.45m/s |
Noise | ≤62dB (A) |
Half ventilation peak value | ≤0.5μm (XYZ direction) |
Illumination | ≥300LX |
Power supply | AC, 220V/50Hz |
Max. power consumption | 500W |
Weight | 150kg |
Dimension of working area(W1*D1*H1) | 1140*600*700 |
Overall dimension W*D*H | 1300*760*1760 |
Suited number | Double/Single |
Efficient filter specifications and quantities | 1125*540*50*① |
Specification and number of fluorescent lamp or UV lamp of ultraviolet lights | 12W*①/30W*① |
Cleaning level | Grade 100≥0.5μM (209E U.S. Federal) |
Number of bacteria | ≤5per utensil.hour (90mm utensil) |
The average wind speed | 0.25~0.45m/s |
Noise | ≤62dB (A) |
Half ventilation peak value | ≤0.5μm (XYZ direction) |
Illumination | ≥300LX |
Power supply | AC, 220V/50Hz |
Max. power consumption | 500W |
Weight | 150kg |
Dimension of working area(W1*D1*H1) | 1140*600*700 |
Overall dimension W*D*H | 1300*760*1760 |
Suited number | Double/Single |
Efficient filter specifications and quantities | 1125*540*50*① |
Specification and number of fluorescent lamp or UV lamp of ultraviolet lights | 12W*①/30W*① |
