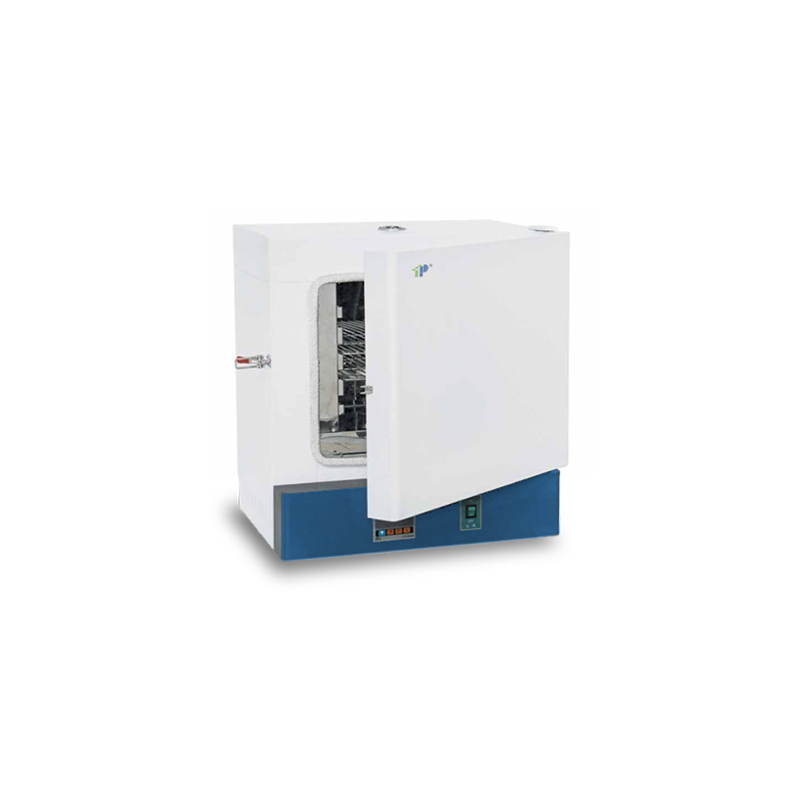

High Temperature Test Chamber

Model: TW Series

TOP INSTRUMENT High Temperature Test Chamber is the necessary testing equipment in aviation, automobile, household appliances, scientific research and other fields. It is used to test and determine the parameters and performance of electrical, electronic and other products and materials after high temperature or constant temperature environment changes.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TW Series

  • TOP

Characteristic:


  • The shell of the product is made of cold-rolled steel plate, and the surface is electrostatically sprayed.

  • The studio is made of high-quality 304 mirror-finished stainless steel, with four-corner arc transitions, double inner tanks, and a beautiful appearance.

  • Equipped with 304 stainless steel handle, adjustable and more airtight.

  • Using intelligent PID temperature control instrument, it has functions such as timing, over-temperature alarm indication, temperature deviation correction, and temperature control self-tuning.

  • The fully enclosed stainless steel heating tube is combined with the air jacket heating method, and the high-temperature fan circulates to make the temperature more uniform.

  • The sealing strip is made of aviation sealing material, which can withstand high temperature up to 1000℃.

  • Air supply mode: fan forced circulation.

  • Thickened heat preservation, with a heat insulation layer inside.

  • It can be equipped with LCD instrument, program control instrument, printer, 485 interface, U disk storage, SMS alarm and other functions.




Model

TW-50BE

TW-80BE

TW-150BE

TW-250BE

TW-350BE

Capacity

50L

80L

150L

250L

350L

Power supply

220V 50HZ

380V 50HZ

Temperature control range

50-500℃

Temperature resolution

0.1℃

Temperature fluctuation

±1℃

Power

300W

3000W

4500W

5500W

6500W

Studio Size (D*W*H) mm

330*350*350

400*400*500

500*500*600

500*650*750

1000*440*800

Dimensions (D*W*H) mm

510*650*750

575*700*880

640*800*1040

640*950*1190

1190*770*1280

Package size (D*W*H) mm

620*820*820

670*700*900

775*935*1180

775*1085*1330

1200*750*1130

Net weight/gross weight KG

58/68

80/94

102/121

135/156

160/190
