PH Series
TOP
Characteristic:
The inner tank of this series of water baths is made of 304 stainless steel by one-step stamping. The outer shell is folded and welded of high-quality 304 stainless steel. A stainless steel tubular heater is placed horizontally in the water tank. A stainless steel shelf with holes is placed inside the water bath.
The upper cover is equipped with combined ferrules of different calibers, which can adapt to flasks of different calibers (the upper cover is made of 304 stainless steel and the ring cover is made of plastic).
There is a hidden drain pipe on the left side of the water bath, and an electrical control box on the right side. The panel is equipped with temperature control instruments and power switches.
There are electric heating tubes and sensors in the electrical box. The temperature control system adopts advanced microcomputer PID control technology, which has sensitive temperature control, reliable performance and easy use.
Characteristic:
The inner tank of this series of water baths is made of 304 stainless steel by one-step stamping. The outer shell is folded and welded of high-quality 304 stainless steel. A stainless steel tubular heater is placed horizontally in the water tank. A stainless steel shelf with holes is placed inside the water bath.
The upper cover is equipped with combined ferrules of different calibers, which can adapt to flasks of different calibers (the upper cover is made of 304 stainless steel and the ring cover is made of plastic).
There is a hidden drain pipe on the left side of the water bath, and an electrical control box on the right side. The panel is equipped with temperature control instruments and power switches.
There are electric heating tubes and sensors in the electrical box. The temperature control system adopts advanced microcomputer PID control technology, which has sensitive temperature control, reliable performance and easy use.

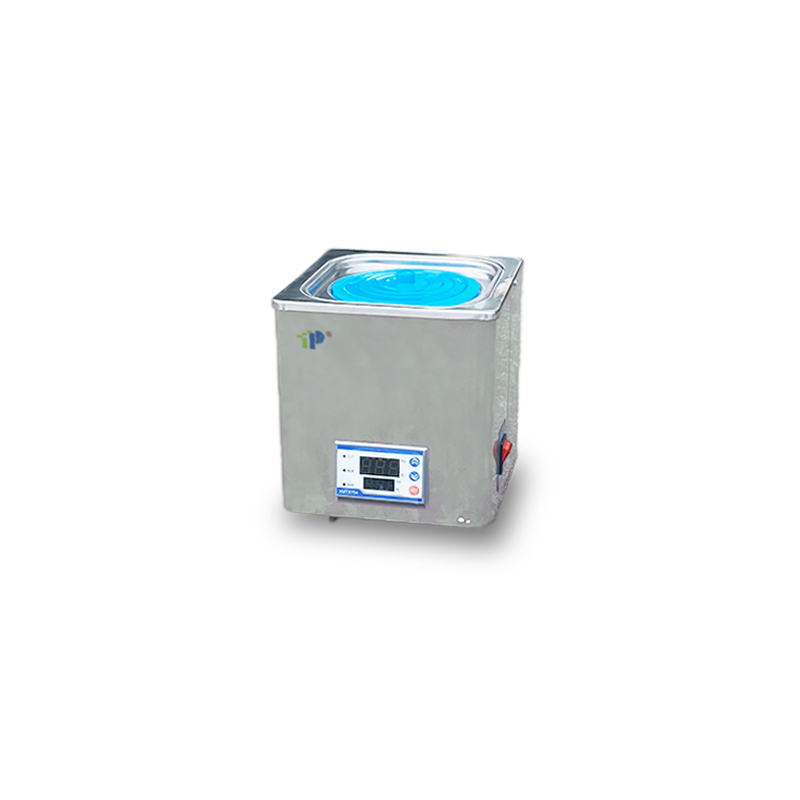

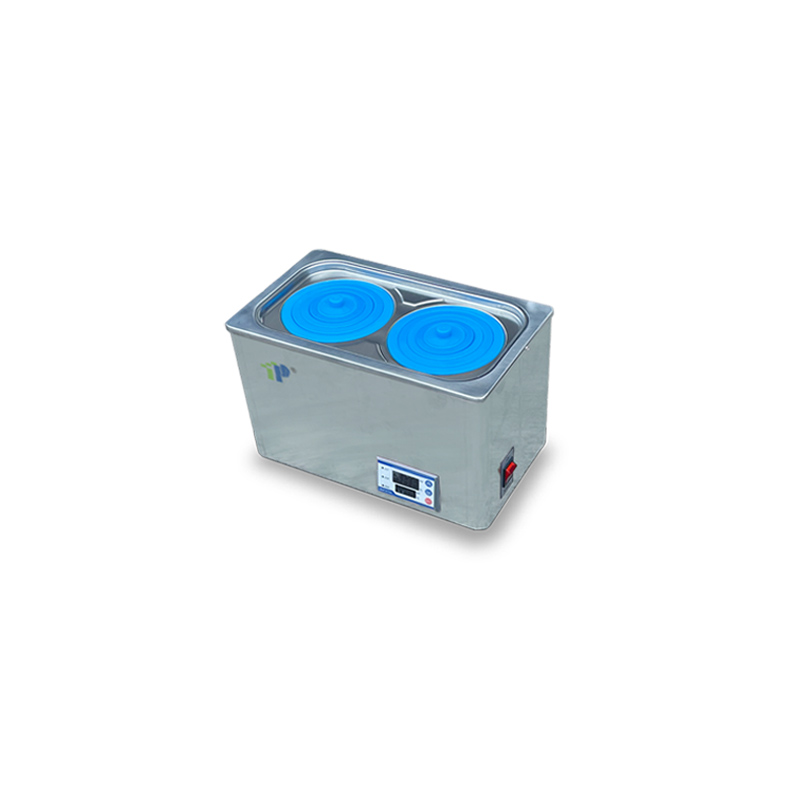

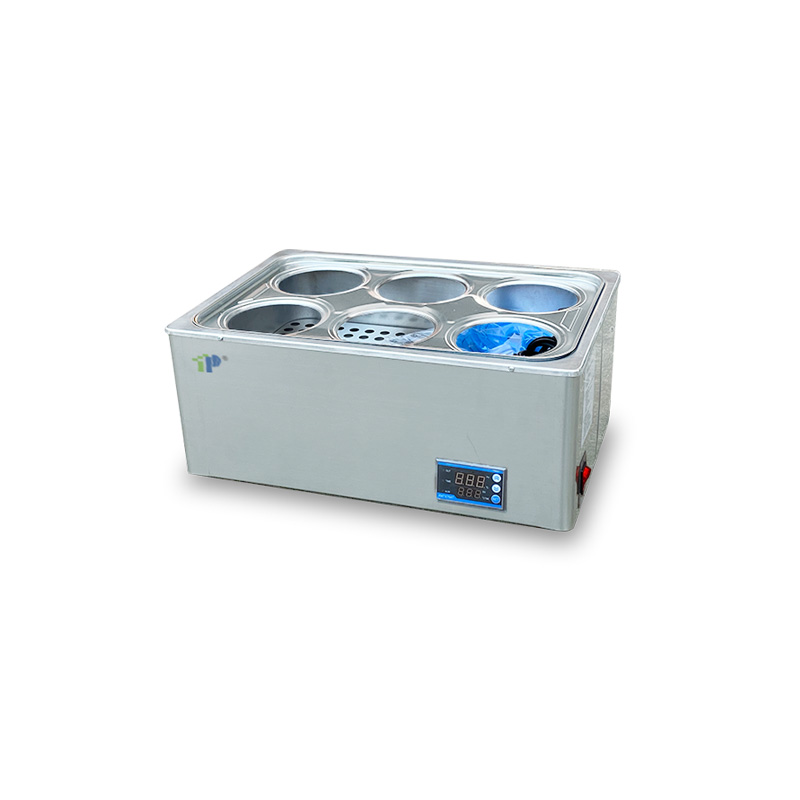

Mode | PH-B1 | PH-B2 | PH-B4 | PH-B6 |
Type | Single column | Single column | Double row | Double row |
Power supply | 220V 50-60HZ | |||
Heating power | 300 | 600W | 800W | 1200W |
Temperature control range | RT-100.0℃ | |||
Water temperature fluctuations | ±0.2℃ | |||
Temperature control accuracy | ±0.1℃ | |||
Cover opening size | Φ120mm | |||
Working volume (cm3) | 16*16*12 | 31*16*12 | 31*31*12 | 46*31*12 |
Note: For customers with other requirements, we can customize production according to user requirements.
Mode | PH-B1 | PH-B2 | PH-B4 | PH-B6 |
Type | Single column | Single column | Double row | Double row |
Power supply | 220V 50-60HZ | |||
Heating power | 300 | 600W | 800W | 1200W |
Temperature control range | RT-100.0℃ | |||
Water temperature fluctuations | ±0.2℃ | |||
Temperature control accuracy | ±0.1℃ | |||
Cover opening size | Φ120mm | |||
Working volume (cm3) | 16*16*12 | 31*16*12 | 31*31*12 | 46*31*12 |
Note: For customers with other requirements, we can customize production according to user requirements.
