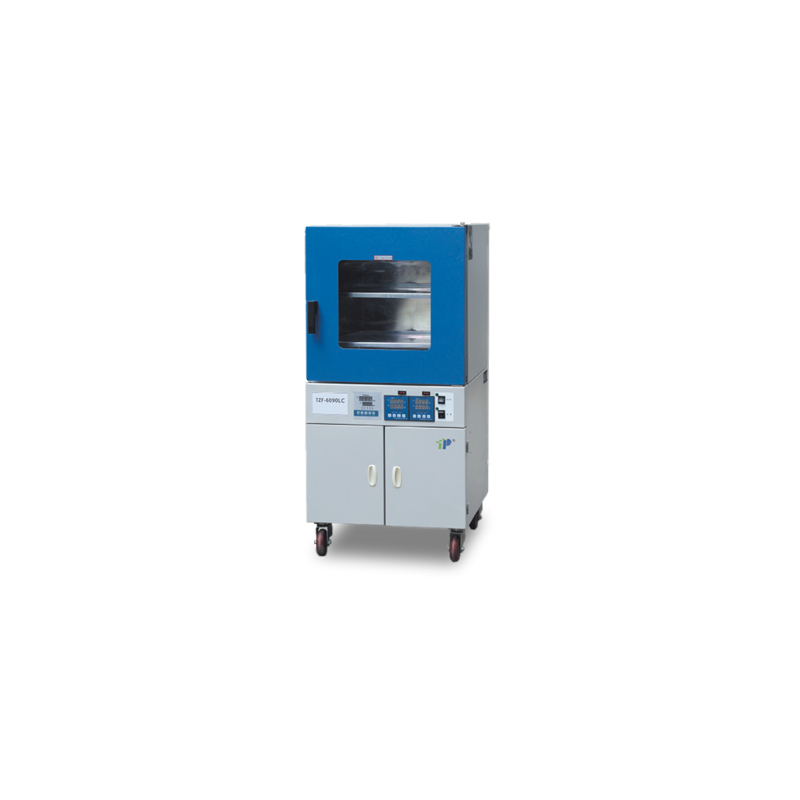

Floor Type High Precision Vacuum Drying Oven

Model: TZF Series

TOP INSTRUMENT Floor Type High Precision Vacuum Drying Oven is specially designed for drying heat-sensitive, easily decomposed and easily oxidized substances, and can be filled with inert gas inside, especially some items with complex components can also be dried quickly. It is widely used in pharmaceutical, electronic and chemical industries.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TZF Series

  • TOP

Characteristic:


  • Digital microcomputer temperature controller with timing function, accurate and reliable temperature control.

  • The cuboid studio maximizes the effective volume.

  • Toughened, bulletproof double-layer glass door to observe the objects in the working room, which is clear at a glance.

  • The tightness of the box door can be adjusted, and the integrally formed silicone rubber door seal ensures high vacuum in the box.

  • The studio is made of stainless steel plate or brushed plate to ensure that the product is durable.

  • The "D" series is an intelligent ten-segment programmable LCD controller.

  • Equipped with "LC" series to display and control the vacuum degree.




ModelTZF-6050LCTZF-6090TZF-6123ATZF-6210TZF-6500TZF-6930
TZF-6053LCTZF-6090DTZF-6123LCTZF-6210DTZF-6500D
TZF-6126ATZF-6210LCTZF-6500LCTZF-6930LC
TZF-6055LCTZF-6090LCTZF-6126LCTZF-6216ATZF-6506ATZF-6936
TZF-6216LCTZF-6506LCTZF-6936LC
Voltage220V 50HZ380V 50Hz
Input power1800W1400W2000W2200W3600W5600W

Temperature control range

+10℃~250℃

+10℃~200℃

Temperature resolution

0.1℃

Constant temperature fluctuation±1℃

Reach vacuum

<133Pa

Working temperature5℃~40℃
Inner tank size(mm)

415*370*345

450*450*450500*500*500560*600*640630*810*845

750*1060*1050

Dimensions (mm)

600*570*1200

615*620*1300665*670*1400720*805*1600790*1030*1760

1400*1390*2005

Shelf

2; 3; 5

2; 2; 23; 3; 3; 6; 63; 3; 3; 6; 63; 3; 3; 6; 6

5; 5; 6; 6

Heating methodSurroundShelfShelf/SurroundShelf/SurroundShelf/SurroundShelf/Surround
Studio materialStainless steel (1Gr18Ni9Ti)
Timing range1~9999 minutes
