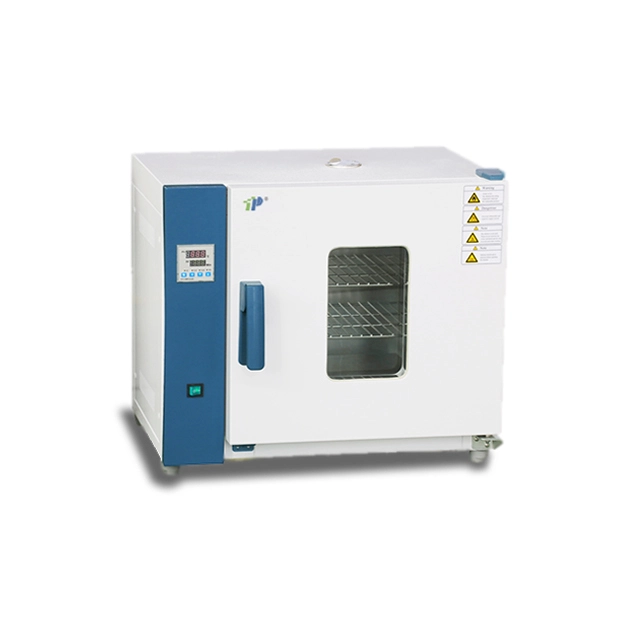

Economical Horizontal Drying Oven

Model: T-101 / T-202

TOP INSTRUMENT Horizontal Drying Oven is known for its high efficiency, reliability, and ease of use, making it a popular choice for many industrial applications.The oven's design and airflow system result in high efficiency and reduced drying times, leading to increased productivity and lower energy costs.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • T-101 / T-202

  • TOP

Characteristic:


  • Horizontal forced air type, high space utilization and good temperature uniformity.

  • 101: The fan heat dissipation structure makes the working temperature of the fan less than 50℃, so that the fan can run for along time.

  • 202: Classical natural convection drying method.

  • New anti-hot handle.



Model

T-101-0A/101-0AB

T-101-1A/101-1AB

T-101-2A/101-2AB

T-101-3A/101-3AB

T-202-0A/202-0AB

T-202-1A/202-1AB

T-202-2A/202-2AB

T-202-3A/202-3AB

Cycle Mode

101 means Forced convection; 202 means Natural convection

Function

Temp. Range

RT+10-250℃

Temp. Resolution Ratio

0.1℃

Temp. Motion

±1℃

Temp. Uniformity

±2.5%

Structure

Inner Chamber

B model: High quality stainless steel;
without B model:High strength galvanized sheet

Outer Shell

Cold rolling steel electrostatic spraying exterior

Insulation layer

High quality rock wool board (with CE)

Heater

T-101 model with Stainless steel electric heating tube;
T-202 model with Nickel chromium alloy heating wire

Power rating

1.2kW

1.6kW

2.3kW

3.0kW

Exhaust hole

φ35 mm top(with function of test hole)

Controller

Temp. control mode

Two temperature section PID intelligent

Temp. setting mode

Touch button setting

Temp. display mode

LED Digital display

Timer

0-9999min(with timing wait function)

Operation function

Fixed temperature operation, timing function,auto stop.

Additional function

Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory

Sensor

PT100

Safety device

Over temperature sound-light alarm

Specification

Inner Chamber size(W*L*H)(mm)

350*350*350

450*350*450

550*450*550

600*500*750

Exterior size (W*L*H)(mm)

652*472*587

752*472*687

852*572*786

902*622*986

Packing size (W*L*H)(mm)

755*615*735

855*615*835

955*715*935

1005*765*1135

Volume

43L

71L

136L

225L

Shelf number

9

13

17

25

Load per rack

15kg

Shelf space

25mm

(50/60HZ)Current rating

AC220V/5.5A

AC220V/7.3A

AC220V/9.1A

AC220V/13.6A

NW/GW (kg)

33/37

45/50

62/68

77/96

Accessory

Shelf

2

Shelf frame

4

Optional accessories

Shelf
