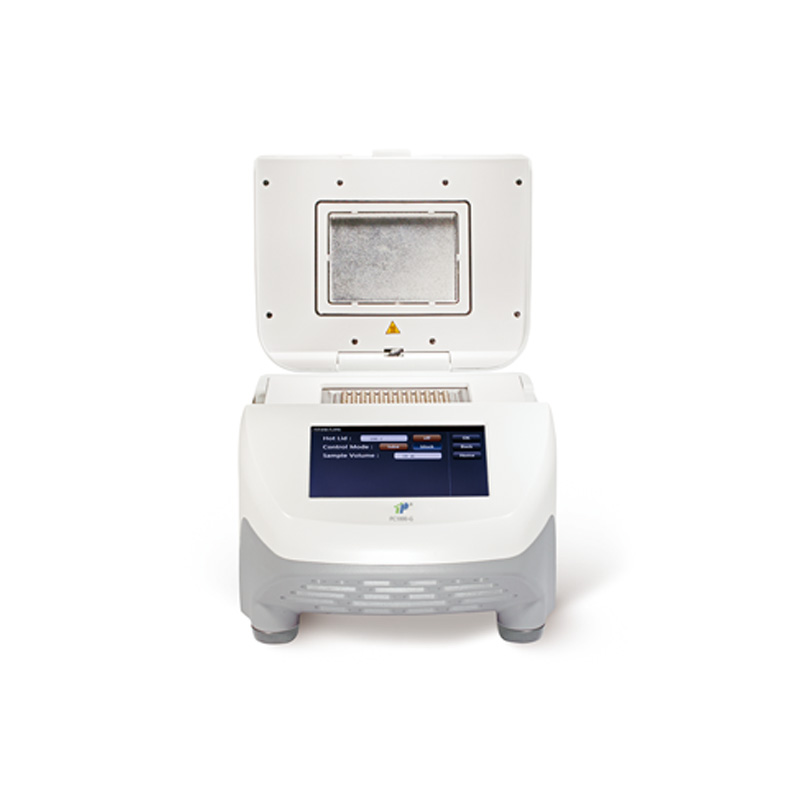

Gradient Thermal Cycler PC1000-G

Model: PC1000-G

TOP INSTRUMENT Gradient Thermal Cycler PC1000-G is the instrument used to amplify DNA segments and perform temperature sensitive reactions. These thermal cyders consist of a block designed to accommodate micro centrifuge tubes or 96-well plates for precise temperature contro and uniform operation. They are widely used in molecular genetics research,biotech services and clinical laboratory tests.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PC1000-G

  • TOP

Characteristic:


  • High precision temperature control with high heating/cooling ramping rates.

  • Large LCD digital touch screen for easy programming with clear display and user friendly software.

  • The hot lid is flexible to press the tube caps or plate cover uniformly and ensure minimum loss ofevaporation.

  • Homogeneous temperature across plate wells or PCR tubes.

  • Aluminum heating block for efficient heat transfer.

  • User defined large program storage system of up to16 folders and 16 files in each folder.




Sample capacity

96*0.2mL PCR tube, 8*12 PCR strip or 96 well plate

Heating temperature range

4-105℃

Lid temperature range

30-110℃

Temperature display accuracy±0.1℃

Temperature control accuracy [at 55°C]

±0.3°℃

Temperature uniformity [at 55°]

<0.3℃

Max heating/cooling rate

3°C/Sec

Gradient temperature setting range30-99℃
Gradient range1-42℃
Adapter block materialAluminum
Display7” LCD 800*480
Input

Touch panel

User defined file system

Max. 30 segments 99 cydes

Up to 16 folder and 16 files each folder

Power failure protaectionYes
Voltage100-120V200-240V, 50/60Hz
Dimension [W*D*H]280*370*250 mm

Weight

11kg
