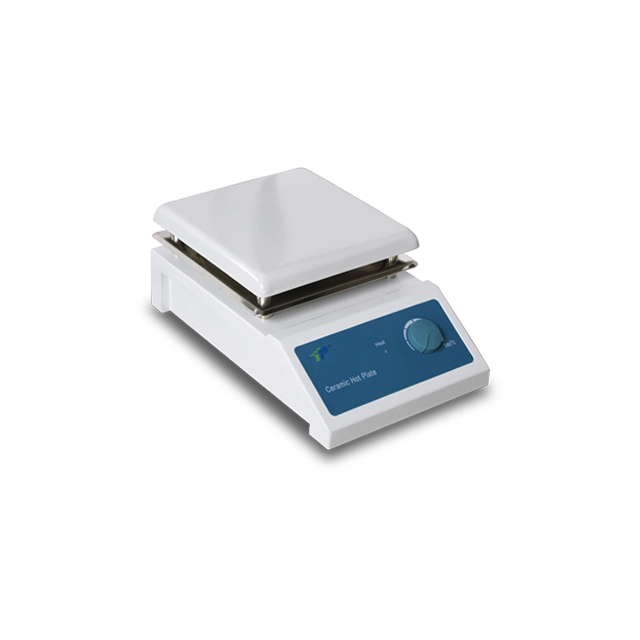

Digital Model Ceramic Magnetic Stirrer

Model: TH-4A/TH-4B/TH-4/TH-4C/TH-II-4C

TOP INSTRUMENT Digital Model Ceramic Magnetic Stirrer is widely used for heating and stirring in the school, laboratory, industrial and mining, food processing, biochemistry, agriculture for the liquid.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TH-4A/TH-4B/TH-4/TH-4C/TH-II-4C

  • TOP


Characteristic:


  • Stretched shell and cover prevent leaking.

  • Heating and stirring can be used simultaneously, uniform temperature, heating fast and safety.

  • Heating power and stirring speed stepless adjustable, Max. temperature up to 380 degree, Max. speed up to 2000 r.p.m.


    New digital model Ceramic Magnetic Stirrer with the following function:

    TH-4C model:

  • Temperature setting accurately and the stirring speed is stepless adjustable.

  • Large screen LCD display with backlight, real temperature and real speed display on the screen simultaneously.

  • Two sensor outside PT100 sensor controls the liquid tempertature with high precise, inside K type sensor controls the hot plate temperature.

    TH-II-4C model:

  • Setting rotational speed precisely and the stirring speed is stepless adjustable. This instrument with the speed switch can start and stop stirring at any time.

  • With the function of timing (0-9999min) that can set time in accordance with customers’ requirement. The instrument also with audible and visual alarm.

  • Dual inside and outside sensors, the outside PT100 sensor can control precisely the temperature of heated liquid. The inside K sensor can control the temperature of hot plate.

  • One key to shift inside and outside sensor, easy to operate and control precisely.

  • Large screen LCD display can indicate temperature, rotational speed and timing at the same time.




Model

TH-4A

TH-4B

TH-4

TH-4C

TH-II-4C

Mode

Heating

Stirring

Heating + Stirring

Digital+ Heating + Stirring

Function

Max. Volume(ML)

no

5000

5000

5000

5000

Speed(r.p.m)

no

200~2000

Working time

Continuous

Minimum revolution ( R.P.M.)

no

200

200

200

200

Max. temp(℃)

380

no

380

350

350

Structure

Exterior

Iron plate welding, surface spraying

Heating plate

Aluminum tensile

Driving mode

no

Motor

Motor power (W)

no

20

20

20

20

Heating power(kW)

0.6

0.6

0.6

0.6

0.6

Stir bar

no

PTFE

Controller

Continuous operation

yes

Setting mode

Scale

Digita

Speed display mode

Scale

Digital

Digital

Timer

no

yes

Operation function

no

yes

Sensor

no

PT100

PT100

Specification

Exterior size (W*L*H)(mm)

320*190*125

Packing size (W*L*H)(mm)

390*240*230

Plate size(mm)

190*190

Plate load

10KG

Power supply(50/60Hz)Current rating

110V or 220V

NW/GW (kg)

5/6

5/6

5/6

5/6

5/6
