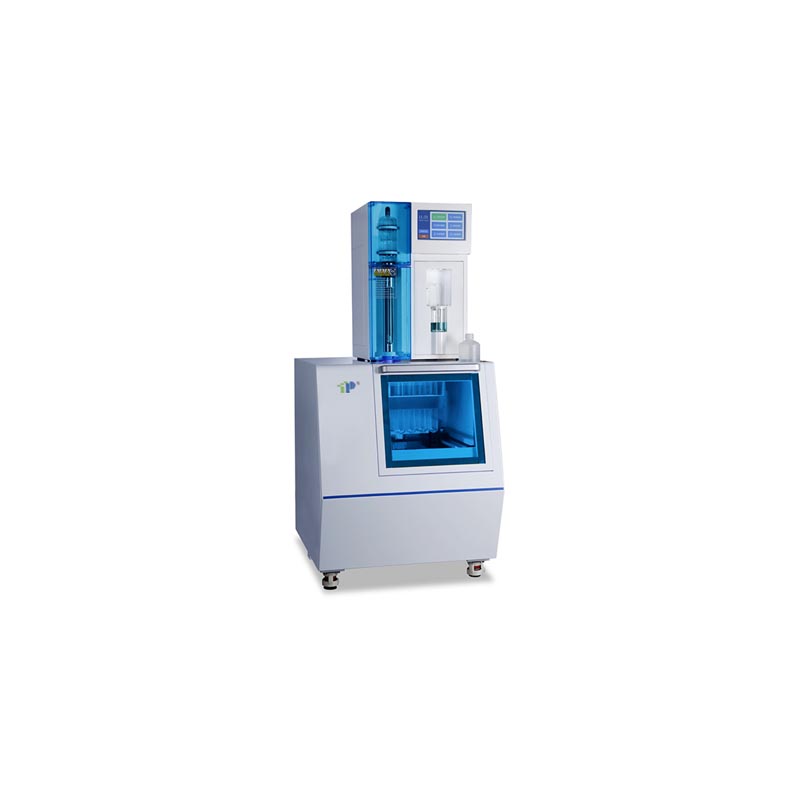

Advance Fully Automatic Kieldahl Apparatus

Model: ZDDN-8900

TOP INSTRUMENT Advance Fully Automatic Kieldahl Apparatus is currently the product with the largest sample placement capacity (40 positions), the highest degree of automation (no manual transfer of test tubes), and the most complete supporting equipment (optional 40-hole digestion furnace, 40-tube fully automatic tube washing) in China machine), choosing Top Instrument's series of products solves complicated tasks, saves labor costs and improves work efficiency.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • ZDDN-8900

  • TOP

Characteristic:


  • The automatic sample introduction system can place 40 digestion tubes at the same time to meet the requirements of batch automatic analysis.

  • The sample storage adopts a rectangular structure design. After the sample is digested, it can be put directly on the machine together with the digestion tube rack, which is convenient and fast. Compared with disk-type sample storage, the cumbersome operation of secondary transfer of the digestion tube is reduced.

  • The system automatically shuts down after 60 minutes of unattended operation, which is energy-saving, safe and reliable.

  • The instrument has a built-in protein coefficient query table for users to read, query and participate in system calculations. When the coefficient = 1, the analysis result is "nitrogen content". When the coefficient > 1, the analysis result is automatically converted to "protein content" and displayed and stored. ,Print

  • The R, G, and B three-color light intensity automatic adjustment system can adapt to the analysis of different formulas of boric acid absorption solutions and samples of different concentrations.

  • The internal standard of titrant concentration eliminates system errors and is highly precise and convenient.

  • Automatic cleaning of alkali pipeline to prevent pipeline blockage and ensure liquid supply accuracy.

  • The standard configuration refrigeration system can save a lot of water resources for users, and is energy-saving and environmentally friendly.

  • The unique "sample weighing data automatic upload data package" eliminates the need to record and enter the weight of samples one by one, reducing input errors and improving work efficiency.




ProjectParameter
ProjectParameter
Analysis scope0.1-240 mgN
Digestion tube waste discharge modeManual/automatic discharge
Accuracy(RSD)≤0.5%Steam flow regulation1%--100%
Recovery rate99-101%Safe alkali addition mode0-99 seconds
Minimum titration volume0.2μL/stepAutomatic shutdown time60 minutes
Titration speed0.05-1.0ml/S optionally setOperating VoltageAC220V/50Hz
Autosampler digits40 digitsHeating power2000W
Distillation time10-9990 free settingHost size500mm long*460mm wide*710mm high
Sample analysis time4-8min/(cooling water temperature 18℃)Autosampler sizeLength 930mm* Width 780mm* Height 950mm
Titrant concentration range0.01—5mol/LOverall height of instrument assembly1630mm
Titrant concentration input methodManual input/instrument internal standardRefrigeration system temperature control range-5℃-30℃
Titration modeStandard/drip while steamingOutput cooling capacity/refrigerant1490W/R134A
Titration cup volume300mlRefrigeration tank volume6L
Touchscreen10-inch color LCD touch screenCirculation pump flow10L/min
Data storage capacity1 million sets of dataLift10 m
Printer5.7CM thermal automatic cutting printerOperating VoltageAC220V/50Hz
Communication Interface232/Ethernet/computer/electronic balance/cooling water/reagent barrel levelPower850W
