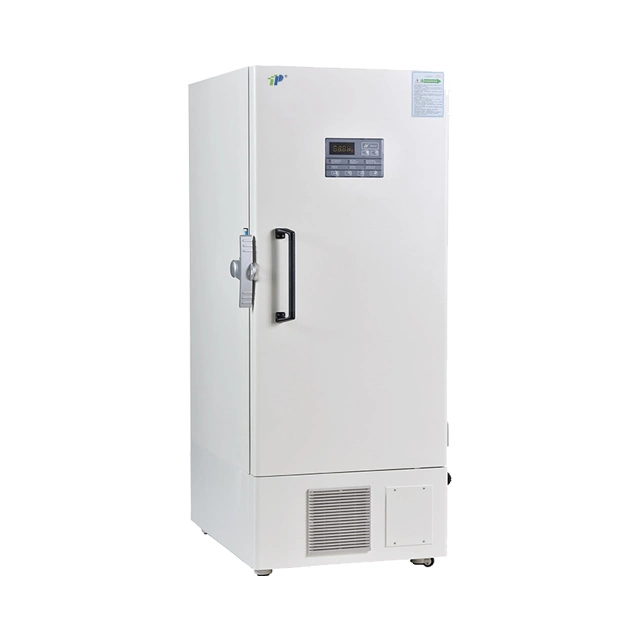

-86℃ Automatic Cascade System Ultra Low Temperature Freezer

Model: T-86V340E

TOP INSTRUMENT -86℃ Automatic Cascade System Ultra Low Temperature Freezer is specially designed and manufactured for long termstorage of various biological products , including viruses , germs ,erythrocytes , leucocyte and cutis . Applications can be found in bloodbanks , hospitals , edipemic prevention service , and research institutes ,laboratories in electronic and chemical plants and biologicalengineering institutes.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • T-86V340E

  • TOP

Characteristic:


  • Large  LED Display: Big LED Display is good for people who can control this ultra low freezer ,also monitor all data during the running.

  • 10 Types of Alarm: High and low temperature alarm, power failure alarm, high and low voltage alarm, sensor failure alarm, low battery alarm, condenser heat dissipation alarm, system failure alarm, etc, to ensure the safety of stored samples. Start-up delay and shutdown interval protection functions ensure reliable operation.

  • Multi-layer sealing design: Better sealing, better insulation

  • Eco-Friendly: CFC Ultra-low power consumption, down to less than 10kWh/day, ensuring a world leading environmentally friendly performance.

  • Energy Saving: The ultra-low temperature freezer adopts the unique secondary foaming technology, and the ultra-thick VIP insulation layer greatly improves the insulation effect; the VIP vacuum insulation board tightly locks the cold air to ensure the insulation effect.




Basic
Cooling methodDirect Cooling
DefrostManual
Temperature range-40℃ ~ -86℃
Ambient temperature10 ~ 32℃
DisplayLED digital
Access port QTY / Dia.1 / 25mm
USB InterefaceYes / 1
Remote alarm AccessRS232 / 485
Outside materialColor sprayed steel
Inside materialSUS304
CastorUniversal
Refrigeration System
RefrigerantR4001 ( mxed gas )
Temp. controllerMicroprocessor
SystemAuto-cascade
SensorPT100
Compressor brand / QTYSECOP / 1
Capacity ( L / cu ft )340 / 12
InsulationPURF
Inner door material / QTYFoamed SUS304 / 2
Racks 12 ( 4 * 4 )
Boxes ( 2 Inches )192
Samples ( 2ml )19200
Alarms
High / low temperatureY
Power failureY
Abnormal voltageY
Sensor errorY
Door ajarY
Filter screen checkY
Thermostat failureY
Low batteryY
Condenser cleanY
High ambient temperatureY
Door ajarY
Power failure backup ( alarm )72h
Electrical Data
Voltage frequency ( V / Hz )220V 50HZ / 60HZ
Power ( W )810W
Current ( A )5.13A
Power consumption13.09wh / 24h
Noise ( db )52
Dimensions
Package size ( W*D*H ) ( mm )935*1070*2128
Exterior size ( W*D*H ) ( mm )854*1006*1907
Interior size ( W*D*H ) ( mm )488*607*1140
Shipping CBM2.13
N.W / G.W ( kg )268 / 288
Accessories
Chart recorderOptional
Data loggerOptional
CO2 back up systemOptional
LN2 back up systemOptional
GlovesOptional




微信截图_20230418165141


微信截图_20230418163541


微信截图_20230418163526


微信截图_20230418163558
