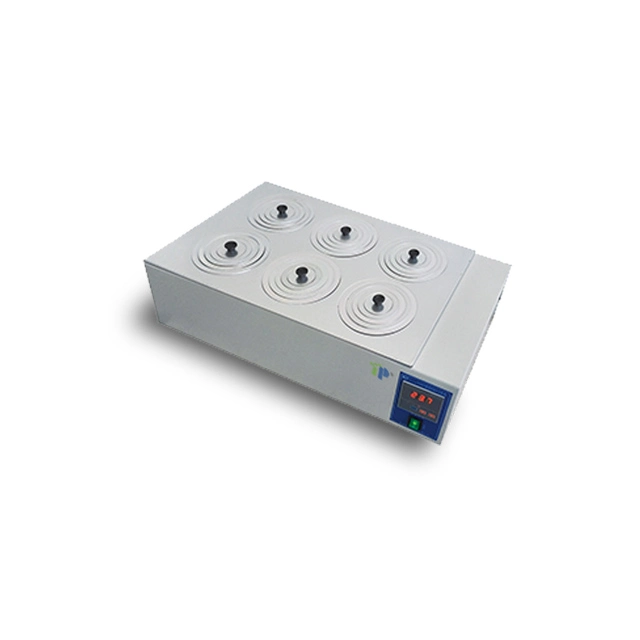

6 Holes Digital Display Circulating Water Bath

Model: PH-6H

TOP INSTRUMENT Circulating Water Baths is used for distillation, drying, concentration and impregnation of chemicals. Its temperature can be precisely controlled using a digital display, ensuring accurate and reliable temperature regulation. Additionally, the baths come in various sizes and configurations, depending on the specific application and requirements.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PH-6H

  • TOP

Characteristic:


  • This product is a sink type, with a maximum diameter of 12 cm. Each hole has four circles and one cover. The inner pot is made of a whole piece of stainless steel stamping (or stainless steel plate welding).

  • The shell is made of high-quality thin steel plate and sprayed with plastic.

  • The electric heating tube is installed in the middle of the water, which can heat up quickly and consume less power.

  • It is equipped with a digital display constant temperature device (intelligent temperature controller), which can be operated according to the instructions of the temperature controller: the temperature adjustment range is 0-100°C, ±0.5°C, and the water temperature can be adjusted according to the user's needs.




Number of holes6
Dimensions530*400*200mm
Working size470*300*100mm
Power1200W


Usage:


When using, you must first add water to the pot (you can also add hot water according to the required temperature to shorten the heating time), connect the power, turn on the power switch, and directly select the desired temperature on the intelligent temperature controller (KW-1000DC) according to the manual. Just need the temperature, the temperature controller will automatically keep the temperature. After work, cut off the power.


Precautions:


  • This product uses AC 220V mains power, and the power input line adopts a three-wire safety plug socket. When in use, it must be grounded safely to prevent leakage.

  • A temperature sensor is installed in a metal tube in the pot to transmit temperature signals. Do not collide or violently vibrate to prevent and control temperature failure.

  • It is strictly forbidden to heat the pot without water, and the water surface should be higher than the heating tube, otherwise the electric heating tube will be burned.
