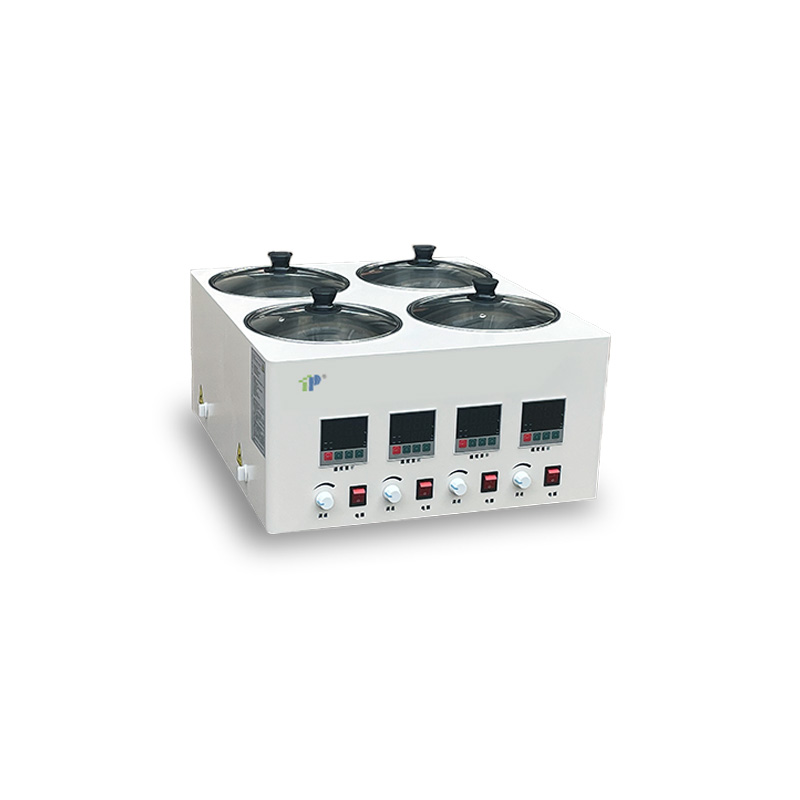

4 Holes Magnetic Stirring Water Bath Pot (with Separate Temperature Control)

Model: PHJ-4A / 4AB

TOP INSTRUMENT 4 Holes Magnetic Stirring Water Bath Pot (with Separate Temperature Control) is mainly suitable for laboratories and laboratories in major universities, scientific research enterprises and institutions. It is widely used in stirring, drying, concentration, distillation, impregnation of chemical reagents, impregnation of pharmaceuticals and biological products. It can also be used for constant temperature of water baths. Heating and other temperature tests. It is an ideal laboratory experimental equipment for stirring, distilling, drying, concentrating and soaking various chemical samples and biological products.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PHJ-4A / 4AB

  • TOP

Characteristic:


  • This instrument is a new product that combines a water bath and a magnetic stirrer. It has two functions: water bath heating and magnetic stirring.

  • Stepless speed regulation or instrument setting speed, program-controlled integrated voltage stabilizing and boosting circuit, the speed is stable and not affected by voltage fluctuations.

  • It adopts advanced electronic technology and intelligent dual digital display configuration to improve temperature control accuracy. LED temperature control digital display makes the readings intuitive and accurate, making it more convenient to use. Microcomputer temperature control RT-100℃, accuracy ±0.1℃. The studio water tank is made of high-quality 304 stainless steel (with water level scale), which has good corrosion resistance. The porous stirring can be controlled independently without interfering with each other.

  • The heater adopts a special molding process, immersed ring heating, and even heating. Suitable for experiments at the same temperature and different speeds. With a unique insulation and heat dissipation system, it can work for a long time at high temperatures of 100 degrees.

  • The stirrer is made of polytetrafluoroethylene and high-quality magnetic steel, which is resistant to high temperature, wear and chemical corrosion, and has strong magnetism.

  • The new 4- and 6-position water baths are designed with drain outlets for easy drainage. The screw-less design on the countertop avoids the old-fashioned drilling and fixing installation method. The countertop will not rust in the future, and there will be no water infiltration into the electrical box.

  • The entire series uses brushless motors, which can operate at a low speed of 50 rpm. The AB series has a liquid crystal display that can display real-time temperature and set temperature, real-time speed and set speed. It can work continuously for a long time and avoid running out of carbon brushes. The phenomenon

  • The instrument uses a LCD color screen with high brightness for easy observation. It has 30-segment programming mode, which can cycle up to 99 times. It can work intermittently in forward and reverse directions. The program controls the heating and cooling rates. The diversified design truly realizes the multi-purpose of one machine.

  • Multiple safety protections. When the temperature in the pot is 50 degrees higher than the set temperature, the power supply can be automatically cut off to protect the safety of the experiment. It can also be equipped with an optional float ball. When the water level is lower than the water level, the power supply can be automatically cut off to avoid dry burning.

  • An external sensor probe and fixed bracket are optional. When the probe is plugged in, the temperature inside the beaker is displayed. When the plug is unplugged, the temperature of the liquid in the pot is displayed, making it easier to experiment.

  • Optional magnetic levitation secondary stirring device can realize simultaneous stirring of the solution in the pot and beaker, increasing the temperature uniformity.

  • An optional beaker clamp bracket set is also available, which is suitable for three-neck round-bottomed beakers and is convenient for fixing and clamping.




Model

PHJ-1A

PHJ-1AB

PHJ-2A

PHJ-2AB

PHJ-4A

PHJ-4AB

PHJ-6A

PHJ-6AB

Number of holes

1hole

2hole

4hole

6hole

Operating Voltage

220V/50HZ

Rotating speed

0-2400rpm

50-2400rpm

0-2400rpm

50-2400rpm

0-2400rpm

50-2400rpm

0-2400rpm

50-2400rpm

Motor Power

40W*1

40W*2

40W*4

40W*6

Motor configuration

Brushless Motor

Working size

Single pot diameter 22CM, height 13CM, heating ring inner diameter: 16CM (can hold beakers less than 16cm in diameter)

Timing range

Type A series timing range: 0--999min, Type AB series timing range: 0-9999min

Temperature range

Water bath: RT+5--100℃ Fluctuation: ±0.5℃

Heating power

400W

800W

1600W

2400W

Maximum mixing volume

2000ml*1

2000ml*2

2000ml*4

2000ml*6

Drain outlet

No

Yes

Temperature Sensor

Default: built-in probe, optional external sensor + sensor bracket

Note:

The maximum mixing volume can also be customized according to customer needs;

Product dimensions are subject to manual measurement and errors are inevitable. The actual product will be subject to receipt!
