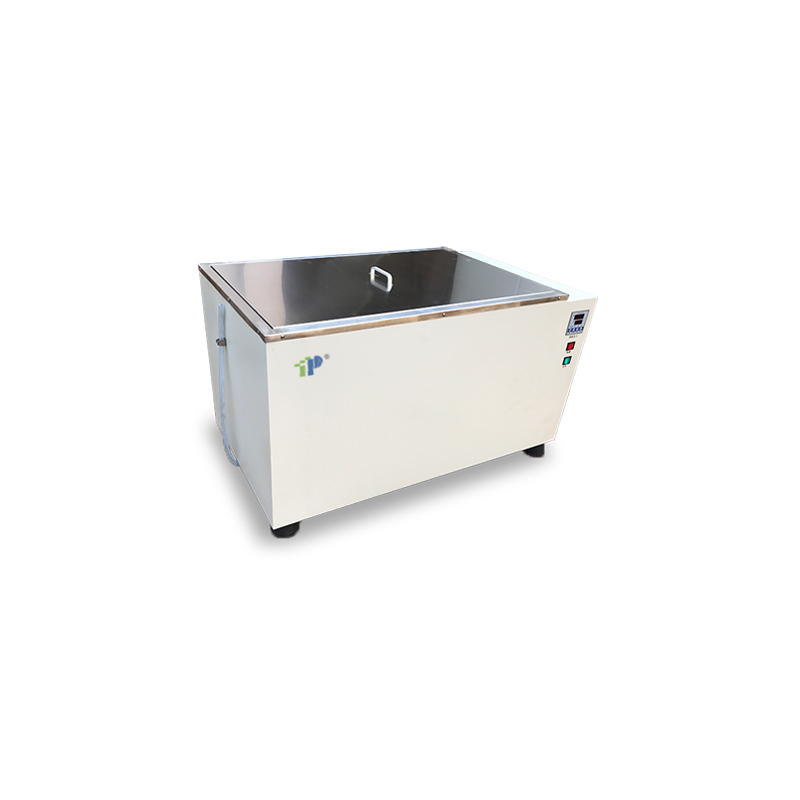

PYSY Series
TOP
Characteristic:
The newly designed precision constant temperature control system enables accurate and controllable temperature throughout the entire measuring range, which is suitable for sample storage, analysis, testing and metrological identification above ambient temperature, as well as the needs of enterprise production.
Digital display of set temperature and actual temperature, setting resolution ±0.1℃.
The use of self-designed and developed high-power, high-stability, and long-life heating devices ensures safe, efficient, and long-term operation of the system.
The instrument's working status and key function indication functions are easy to operate and clearly displayed.
Over-temperature protection, sensor open circuit, short circuit protection and other functions ensure the absolutely safe operation of the instrument.
The large-capacity liquid tank liner, work surface, electric heater and other parts that may come into contact with the working medium are made of stainless steel and are durable.
The external body adopts cold-rolled steel plate electrostatic spraying technology to make the appearance more beautiful and elegant.
High-quality thermal insulation technology can effectively reduce the heat loss inside the bath, save electricity and energy, and make the temperature field inside the bath more uniform.
High-strength swivel caster feet with locking devices allow for easy movement and fixation into a suitable position.
If there are requirements for temperature uniformity, a circulating pump can be selected.
If there are requirements for the corrosion resistance of the shell, you can choose 304 stainless steel material inside and outside.
Characteristic:
The newly designed precision constant temperature control system enables accurate and controllable temperature throughout the entire measuring range, which is suitable for sample storage, analysis, testing and metrological identification above ambient temperature, as well as the needs of enterprise production.
Digital display of set temperature and actual temperature, setting resolution ±0.1℃.
The use of self-designed and developed high-power, high-stability, and long-life heating devices ensures safe, efficient, and long-term operation of the system.
The instrument's working status and key function indication functions are easy to operate and clearly displayed.
Over-temperature protection, sensor open circuit, short circuit protection and other functions ensure the absolutely safe operation of the instrument.
The large-capacity liquid tank liner, work surface, electric heater and other parts that may come into contact with the working medium are made of stainless steel and are durable.
The external body adopts cold-rolled steel plate electrostatic spraying technology to make the appearance more beautiful and elegant.
High-quality thermal insulation technology can effectively reduce the heat loss inside the bath, save electricity and energy, and make the temperature field inside the bath more uniform.
High-strength swivel caster feet with locking devices allow for easy movement and fixation into a suitable position.
If there are requirements for temperature uniformity, a circulating pump can be selected.
If there are requirements for the corrosion resistance of the shell, you can choose 304 stainless steel material inside and outside.
Model | PYSY-100 | PYSY-225 | PYSY-480 | PYSY-1000 |
Inner tank size (cm) | 40*50*50 | 75*60*50 | 100*80*60 | 100*100*100 |
Heating power (kw) | 3 | 6 | 9 | 18 |
power supply | Single phase 220V | Three-phase 380V or single-phase 220V | Three-phase 380V | Three-phase 380V |
Temperature control range (℃) | Room temperature +5~100 | |||
Instrument accuracy (℃) | 0.1 | |||
Temperature fluctuation (℃) | ±1 | |||
Overall dimensions (cm) | 56*57*61 | 97*67*58 | 125*87*75 | 125*107*115 |
Note:This temperature range is room temperature +5-100℃. If the constant temperature is 25℃ or below for a long time, it is generally recommended to bring a compressor for refrigeration.
Model | PYSY-100 | PYSY-225 | PYSY-480 | PYSY-1000 |
Inner tank size (cm) | 40*50*50 | 75*60*50 | 100*80*60 | 100*100*100 |
Heating power (kw) | 3 | 6 | 9 | 18 |
power supply | Single phase 220V | Three-phase 380V or single-phase 220V | Three-phase 380V | Three-phase 380V |
Temperature control range (℃) | Room temperature +5~100 | |||
Instrument accuracy (℃) | 0.1 | |||
Temperature fluctuation (℃) | ±1 | |||
Overall dimensions (cm) | 56*57*61 | 97*67*58 | 125*87*75 | 125*107*115 |
Note:This temperature range is room temperature +5-100℃. If the constant temperature is 25℃ or below for a long time, it is generally recommended to bring a compressor for refrigeration.
