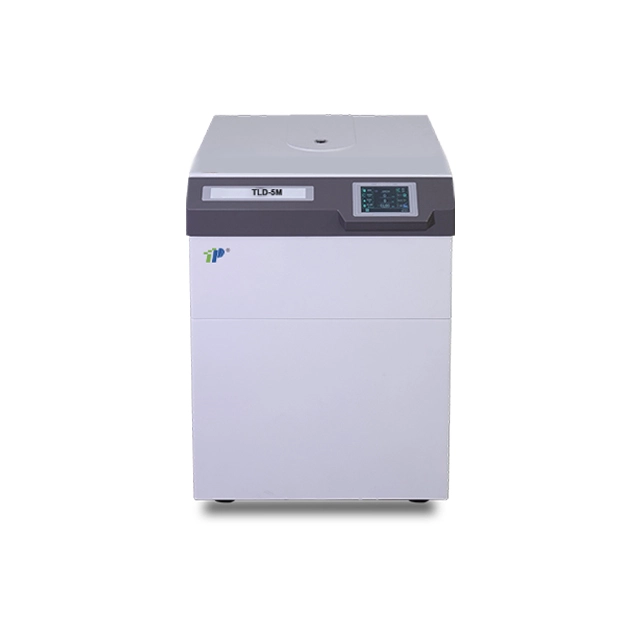

Floor Model Large Capacity Low-speed Freezing Centrifuge

Model: TLD-5M

TOP INSTRUMENT Floor Model Large Capacity Low-speed Freezing Centrifuge is driven by a brushless variable frequency motor, controlled by a microcomputer, with LCD and digital dual-screen display, stainless steel centrifugal chamber, electronic safety door lock, and unbalance protection. Parameters such as speed, centrifugal force, time, temperature, etc. can be changed during operation.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TLD-5M

  • TOP

Characteristic:


  • Touch screen operation, direct digital input for parameter setting, accurate to one digit.

  • Intelligent status prompt, real-time display of instrument status.

  • 5 sets of multi-speed gradient centrifugation programs can be edited and saved.

  • Time display, year, month, day, hour, minute, second, convenient for retrospective use records.

  • Two timing modes of hours.minutes and minutes.seconds are available, and two modes of timing and countdown are optional.

  • 40 levels of speed can be adjusted, and when the speed drops to 500rpm~0, the curve is used to slow down to prevent the sample from reverberating.

  • Speed speed, centrifugal force and temperature curves are displayed on the same screen to monitor the change process and stability of each parameter.

  • Password lock function, the user can set a password to lock the parameters of the host or program group.

  • Automatic conversion of speed and centrifugal force, displayed on the same screen, no need to convert.

  • It has multiple protection functions such as door cover, overspeed, overtemperature, overcurrent, overvoltage, overheating, etc., and the voice and text prompt and display the solution at the same time, which is more stable and reliable.

  • Equipped with electronic manual, never lost, easy to use.

  • Remote switch on/off is optional.




Maximum speed

5000 r/min

Max. RCF

5200*g

Maximum capacity

4*800ml (4000rpm)

Speed accuracy

±10 r/min

Temperature setting range

-20°C~40°C

Temperature control accuracy

±1℃

Timing range

1min~99H59 min

Noise

≤60dB (A)

Power supply

AC 220V 50HZ 15A

Power

1.8KW

Dimensions

650*550*840(L*W*H)mm

Weight

150kg




Rotor

Capacity

Max. Speed

Max. RCF

No. 1 Horizontal rotor

4*100ml

5000rpm

4650*g

4*50ml

No. 2 Horizontal rotor

32*15ml

4000rpm

2980*g

8*50ml

8*100ml

48*2~7ml vacuum tube

4000rpm

3100*g

64*2~7ml vacuum tube

No. 3 Horizontal rotor

                  4*250ml

5000rpm

5200*g

            Optional Adapter

8*50ml

4*100ml

36*10ml

40*7ml vacuum tube

20*15ml

No. 4 Enzyme labeled horizontal rotor

2*3*96 holes

4000rpm

1970*g

No. 5 Horizontal rotor

Swinging Round Bucket Rotor

4*500ml

4000rpm

3400*g

Optional Adapter

16*50ml

36*15ml

76*2~7ml vacuum tube

Swinging Rectangular Bucket Rotor

20*50ml

40*15ml

80*10ml vacuum tube

112*2~7ml vacuum tube

100*1.5ml

Swinging

148*5ml Release tube

96*2~7ml vacuum tube

Enzyme labeling plate rack

4*2*96 holes

No. 6 Horizontal rotor

4*750ml

4000rpm

3500*g

Optional Adapter

12*100ml

20*50ml

56*15ml

96*2~7ml vacuum tube

No. 7 Horizontal rotor

6*250ml

4000rpm

3580*g

Optional Adapter

30*15ml

60*2~7ml vacuum tube

No. 8 Horizontal rotor

4*800ml (Rectangular Bucket)

4000rpm

3580*g

Optional Adapter

140*2~7ml vacuum tube

56*15ml

16*100ml




NO.T.04.100H

101

NO.T.04.050H

102

NO.T.32.015H

103

NO.T.08.050H

104

NO.T.08.100H

105

NO.T.48.2.7H

106

NO.T.64.2.7H

107

NO.T.04.250H

108

NO.T.02.03.96H

109

NO.T.04.500H

110

NO.T.16.050H

111

NO.T.36.050H

112

NO.T.76.2.7H

113

NO.T.20.050H

114

NO.T.40.015H

115

NO.T.80.010H

116

NO.T.112.2.7H

117

NO.T.100.001.5H

119

NO.T.148.005H

120

NO.T.96.2.7H

121

NO.T.04.2.96H

122

NO.T.04.750H

123

NO.T.12.100H

124

NO.T.20.050H

125

NO.T.56.015H

126

NO.T.96.2.7H

128

NO.T.06.250H

129

NO.T.30.015H

130

NO.T.60.2.7H

131

NO.T.04.800H

132

NO.T.56.015H

133

NO.T.140.2.7H

134

NO.T.16.100H

135
