Regular Magnetic Hotplate Stirrer

Model: P-H-S

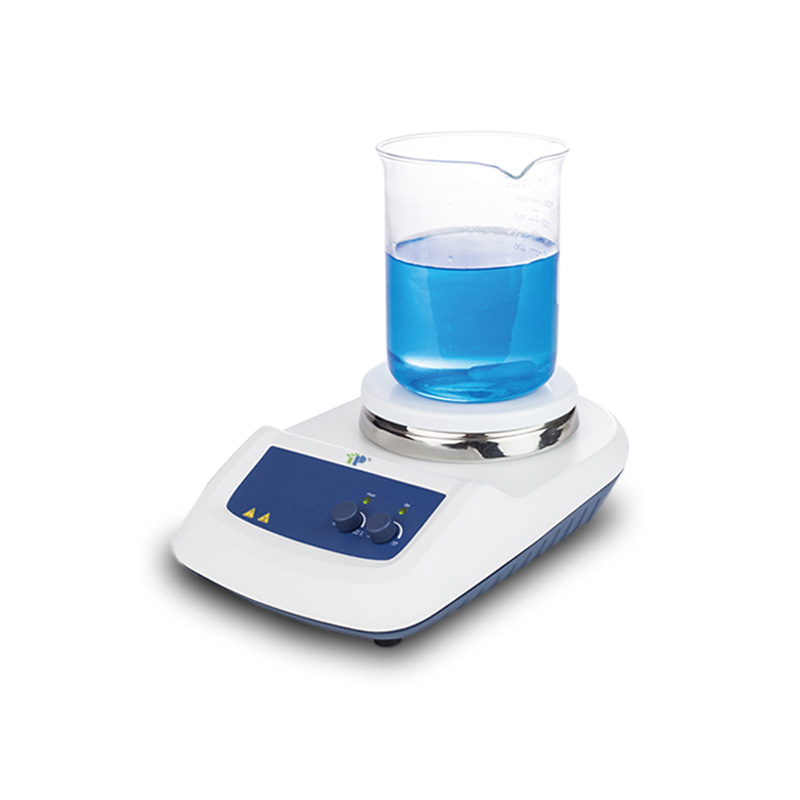

TOP INSTRUMENT Regular Magnetic Hotplate Stirrer is a laboratory device that is used to mix and heat liquids simultaneously. It is designed to be durable, reliable, and easy to use. It is equipped with a range of safety features, including overheat protection and a spill-resistant design. This device is commonly used in scientific research, medical laboratories, and industrial applications.

Quantity:
Availability:




Inquire Add to Basket

Model:
P-H-S
Brand:
TOP

Characteristic:

Maximum heating temperature 340°C.
Maximum speed setting range up to 1500rpm.
530W high power brushless DC motor.
Ceramic workplate provides good resistance and efficient heat transfer.
Overheating protection with “hot” safety indication if temperature is above 50°C.
Various optional accessories makes it suitable for many applications.

Precision Regular Hotplate Magnetic Stirrer Digital with Heat and Stir Regular Laboratory Hotplate Magnetic Stirrer with Heating Chemical Laboratory China Hotplate Magnetic Stirrer Lab CE LCD Ceramic Digital Hotplate Magnetic Stirrer Multi-position Laboratory Magnetic Hotplate Stirrer Industrial Magnetic Stirrer with Hot Plate

Workplate dimension	φ135mm (5 inch)
Workplate material	Stainless steel cover with ceramic
Motor type	Brushless DC motor
Motor rating input	18W
Motor rating output	10W
Power	530W
Heating output	500W
Voltage	100-120/200-240V 50/60Hz
Stirring positions	1
Max. stirring volume [H2O]	20L
Max. magnetic bar [length]	80mm
Speed range	100-1500rpm resolution±1rpm
Speed display	Dial
Temperature display	Dial
Heating temperature range	Room Temp.-340°C
Temperature control accuracy	-
Overheating protection	350℃
Temperature display resolution	±0.5°C
External temperature sensor	-
"Hot" satety indication	-
Timer function	-
Data interface	-
Protection class	IP42
Dimension [WDH]	16028085mm
Weight	2.8kg
Permissible ambient temperature and humidity	5-40C, 80%RH

Workplate dimension	φ135mm (5 inch)
Workplate material	Stainless steel cover with ceramic
Motor type	Brushless DC motor
Motor rating input	18W
Motor rating output	10W
Power	530W
Heating output	500W
Voltage	100-120/200-240V 50/60Hz
Stirring positions	1
Max. stirring volume [H2O]	20L
Max. magnetic bar [length]	80mm
Speed range	100-1500rpm resolution±1rpm
Speed display	Dial
Temperature display	Dial
Heating temperature range	Room Temp.-340°C
Temperature control accuracy	-
Overheating protection	350℃
Temperature display resolution	±0.5°C
External temperature sensor	-
"Hot" satety indication	-
Timer function	-
Data interface	-
Protection class	IP42
Dimension [WDH]	16028085mm
Weight	2.8kg
Permissible ambient temperature and humidity	5-40C, 80%RH


Blue carrying plate (18900001)	Blue Fixed ring（18900065）	Red quarter pie (18900002)	Purple quarter pie (18900003)

Blue quarter pie（18900004）	Black quarter pie (18900005)	Green quarter pie (18900048)	Golden quarter pie (18900049)

Reaction block for 50mL round bottom flask（18900080）	Reaction block for 100mL round bottom flask (18900081)	Reaction block for 250mL round bottom flask (18900082)	Reaction block for 500mL round bottom flask (18900083)

F101 protective cover (18900019)	PT1000-new	PT1000-B (18900136)	Support clamp of PT1000 (18900017)


Blue carrying plate (18900001)	Blue Fixed ring（18900065）	Red quarter pie (18900002)	Purple quarter pie (18900003)

Blue quarter pie（18900004）	Black quarter pie (18900005)	Green quarter pie (18900048)	Golden quarter pie (18900049)

Reaction block for 50mL round bottom flask（18900080）	Reaction block for 100mL round bottom flask (18900081)	Reaction block for 250mL round bottom flask (18900082)	Reaction block for 500mL round bottom flask (18900083)

F101 protective cover (18900019)	PT1000-new	PT1000-B (18900136)	Support clamp of PT1000 (18900017)
