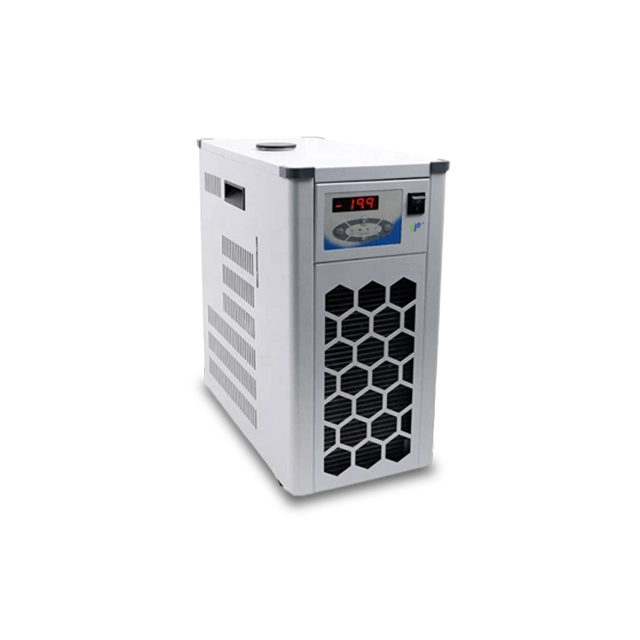

Laboratory Mini Low Temperature Circulator

Model: PCP5-Mini

TOP INSTRUMENT Laboratory Mini Low Temperature Circulator is a laboratory instrument used for controlling the temperature of a liquid sample within a range of -20°C to 100°C. The circulator consists of a refrigeration system, a heating system, and a pump that circulates the liquid through the system. The mini size of the circulator makes it ideal for use in small laboratory spaces or for experiments that require a smaller volume of liquid.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PCP5-Mini

  • TOP

Characteristic:


  • Intuitive liquid level window for easy monitoring of liquid level in storage tank.

  • Water tank is set to protect the overflow port and drain port, which is convenient for filling-in and draining-out liquid.

  • Maintenance-free pressure/suction pump.

  • Pump pressure and flow can be automatically adjusted according to load change.

  • Adopt PID temperature control technology which greatly improves temperature stability.




Temperature Range

-20℃~ Ambient Temp.

Temperature Display

LED Display, Accuracy 0.1℃

Temperature Stability

±0.3℃

Refrigerating capacity

700W

Pump pressure

0.3bar

Pump suction

0.2bar

Pump Flow Max.

22L/Min

Tank Size

4.5L

Cooling Water Tubing

Silicone

Communication interface

Optional RS232/485

Low-level Alarm

Optional

Heating Function

Optional

Overall dimensions (W*D*H)

220*420*495 (mm)

Operating Environment

5-32℃/80%

Outer Connected Dimension

Standard 8mm insulation tube

Power supply

220V/50Hz
